Engineered for space-constrained environments, Weizhong’s safe low-maintenance HGV turntables feature a compact low-profile design for shallow pit or surface mounting. Powered by our patented pin-gear system, these robust platforms offer precise PLC control, global voltage compatibility and all-weather durability to streamline loading dock and construction site operations.

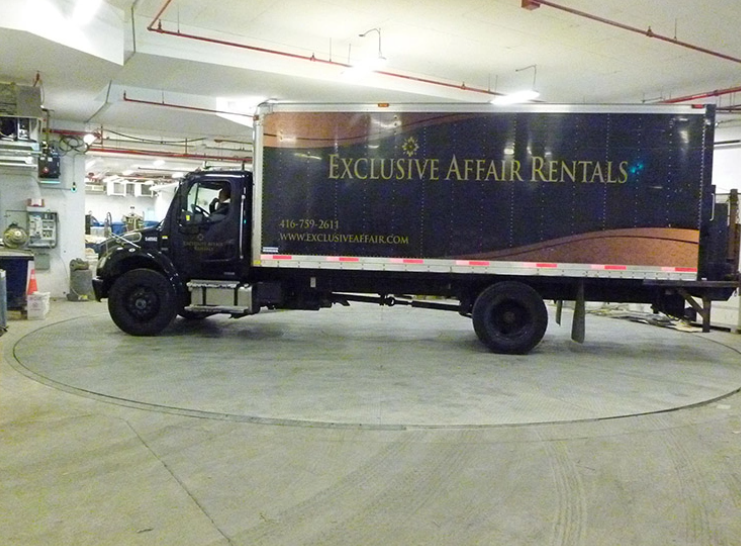

The Weizhong Safe Low-maintenance HGV Turntable is engineered for heavy goods vehicles operating in space-limited environments. Developed by a manufacturer with 35 years of experience in revolving machinery, this turntable allows lorries to rotate 360 degrees within their own length, eliminating the requirement for large turning radiuses. The design integrates precise PLC control systems and multiple safety interlocks, supporting operations in warehouses, loading docks, and construction sites across different regions.
Engineering Specification | Standard & Custom Detail |
HGV Load Capacity | 30 Tons - 100+ Tons (Reinforced Steel Structure) |
Diameter Range | 10m - 35m (Tailored to HGV wheelbases) |
Drive System | Patented Pin-Gear Drive (Low Maintenance) |
Rotation Control | Remote Control / Manual PLC Interface |
Safety Features | Safety Barriers, Proximity Sensors, Emergency Stops |
Surface Finish | Industrial Anti-Skid Diamond Plate Steel |
Installation Depth | Low-profile design for shallow pit or surface mount |
Global Voltage | AC 220V/380V/415V/480V Compatible |
The turntable features a low-profile structure that fits narrow alleys, small warehouses, and tight loading docks. This design optimizes site utilization by reducing the area required for vehicle maneuvering. The surface mount option with a ramp allows installation in locations where pit construction is not feasible.
The advanced PLC-based control system enables exact 360-degree positioning. Operators can control rotation through either a wired manual panel or a wireless remote control. The system maintains consistent rotation speed throughout the entire turning process.
The patented Pin-Gear drive system requires significantly less upkeep compared to traditional friction-driven platforms. This design reduces component wear and extends the service interval of the turntable, lowering long-term operational costs for commercial users.
The turntable incorporates safety barriers, proximity sensors, and emergency stop buttons. These features work together to prevent unauthorized access during operation and stop rotation immediately when obstacles are detected. The anti-skid diamond plate steel surface provides stable traction for vehicle tires.
The turntable improves loading bay turnover rates by simplifying HGV entry and exit procedures. This reduces waiting times for vehicles and increases the overall throughput of distribution facilities.
In confined urban work zones, the turntable safely positions heavy construction equipment and material trucks. This eliminates the need for complex reversing maneuvers in areas with limited visibility.
The turntable supports heavy truck rotation during production, inspection, and final maintenance stages. This streamlines assembly line processes and improves workflow efficiency.
The system facilitates handling of specialized heavy support vehicles in high-security, low-space areas. The corrosion-resistant materials and waterproof components make it suitable for outdoor port and airport environments.
No. The HGV turntables feature a low-profile design that can be installed in a shallow pit or surface-mounted with a ramp, depending on specific site requirements.
Yes. The turntable uses corrosion-resistant materials and waterproof electrical components, making it suitable for both indoor warehouse and outdoor loading zone applications.
The modular design allows for fast assembly. Depending on the turntable size, a local engineering team can complete installation within a few days under remote guidance from Weizhong technical staff.
Weizhong Revolving Machinery, based in Shenyang, China, has provided heavy vehicle rotation solutions for over 35 years. For commercial procurement inquiries and custom configuration requests, contact our technical team to discuss your specific operational requirements.
