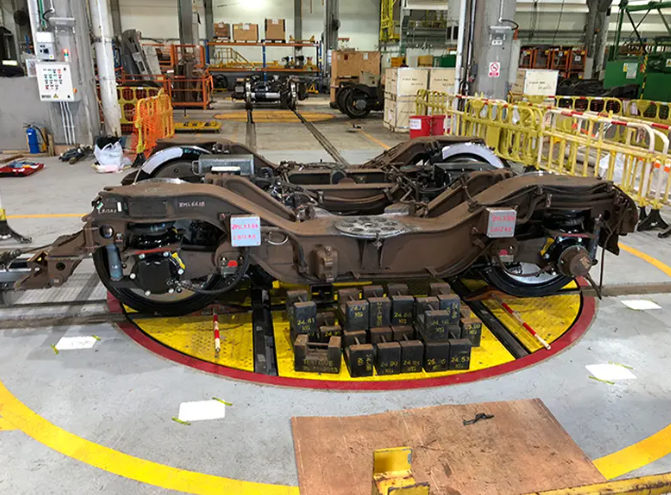

Weizhong's heavy load turntables deliver unmatched performance for rotating massive vehicles and machinery in space-constrained industrial facilities. With a maximum capacity of 100 tons and diameters up to 24m, our patented Pin-Gear Drive System ensures smooth, high-torque rotation without slippage. Modular design enables easy shipping and installation, making them perfect for ports, cargo terminals, and heavy machinery plants.
A heavy load turntable is an industrial platform designed to rotate large vehicles and heavy machinery in space-constrained environments. Weizhong heavy load turntables serve cargo terminals, ports, and heavy machinery plants, providing an efficient method for vehicles to change direction without complex reversing maneuvers. These platforms facilitate orderly flow of heavy goods while achieving space savings and enhancing operational safety. With a maximum loading capacity of 100 tons and customizable diameters up to 24 meters, these turntables address the evolving demands of modern logistics and industrial operations.
Parameter | 9-meter | 12-meter | 15-meter | 18-meter | 24-meter |
Height | 500mm | 500mm | 550mm | 550mm | 550mm |
Rotating Speed | 0.1-0.5RPM | 0.1-0.5RPM | 0.1-0.5RPM | 0.1-0.25RPM | 0.1-0.25RPM |
Loading Capacity | 30 tons | 40 tons | 60 tons | 80 tons | 100 tons |
Motor Power | 4.0KW | 11KW | 18.5KW | 15KW | 22KW |
Power Required | 3 phase 380V AC - 480V AC (Global Standard Compatible) | ||||
Drive Mechanism | Weizhong Patented Pin-Gear Drive System | ||||
Steel Coating | Rust resistant paint and primer / Hot-dipped galvanized for maritime use | ||||
Remote Control | Sweden Tele-Radio Wireless Remote control system | ||||
Weizhong heavy load turntables utilize a patented pin-gear drive system. Unlike conventional friction drives that may experience slippage under heavy loads, this mechanism delivers consistent high-torque rotation. The pin-gear design ensures stable performance even when operating at maximum capacity, making it suitable for rotating semi-trucks, mining equipment, and heavy freight.

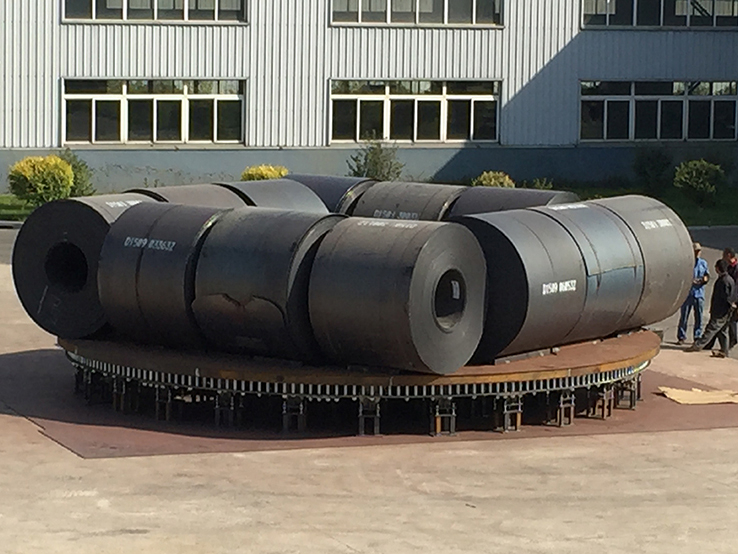

These turntables are engineered with structural integrity as a primary consideration. The platform construction supports distributed loads across the entire surface, preventing deformation under extreme weight. The modular design allows for easy transportation and assembly while maintaining the required strength for heavy industrial use.
Each turntable comes equipped with a Sweden Tele-Radio wireless remote control system. This allows operators to manage rotation from a safe distance, reducing the risk of accidents during operation. The control system provides precise speed adjustment and emergency stop functionality for enhanced workplace safety.
Weizhong offers flexible customization to meet specific industrial requirements. Options include different top surface materials, adjusted rotation speeds, and specialized motor configurations to match regional voltage standards. This adaptability ensures the turntable integrates seamlessly into existing business operations.
Heavy load turntables find use across multiple industrial sectors. In cargo terminals and ports, they enable efficient direction change for container trucks, reducing turnaround times and increasing throughput. In heavy machinery manufacturing plants, these turntables facilitate the movement of large equipment during production and assembly processes. They also serve construction sites, mining operations, and logistics hubs where space is limited and heavy vehicle maneuvering is required.
Yes. Weizhong heavy load turntables are designed as modular components that fit into standard shipping containers, allowing for cost-effective global logistics to any major port.
Our systems support 380V-480V AC, covering the power standards for Europe, North America, Australia, and the Middle East. Specialized motor configurations are available upon request.
Yes. For coastal or high-humidity environments, we offer hot-dipped galvanized steel and rust-resistant coatings to ensure long-term durability in outdoor industrial yards.
We provide comprehensive installation manuals and remote technical guidance. Our modular design ensures that local engineering teams can complete the setup efficiently.
Weizhong Revolving Machinery, based in Shenyang, China, has provided heavy load rotation solutions for over 35 years. To receive a factory quote for your specific requirements, please contact our team today.
