Pin-Gear Drive is a special form of fixed axle gear transmission.

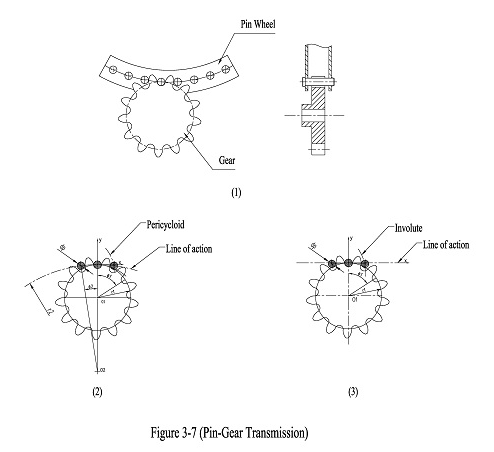

The large wheel with cylindrical pin teeth is called pin wheel. It can be divided intoouter gearing pin gear transmission (see Figure 3-7 ①), inner gearing pin gear transmission (see Figure 3-7 ②) and the rack gearing pin gear transmission (see Figure 3-7 ③). As the pin wheel is round pin shaped, it has simple structure, easy processing, low cost, easy overhaul compared to the general gear.
Suitable for low-speed and heavy-duty mechanical transmission and for occasions with more dust, poor lubrication condition and so on.
Q2: What are the advantages of pin-gear drive mechanism?
At the heart of all our turntables is our own the Pin-Gear Drive system. It is a technically superior drive system, without the problems that are typically associated with friction drive systems.
Advantages of the Pin-Gear drive system:
Elimination of friction wheel slip.
Elimination of periodic friction wheel spring adjustments. Spring fade over time.
Ability to maintain precision rotation/angular accuracy and tracking. This is particularly important with antenna testing turntables and in other uses where backlash reduction or elimination is critical.
Fewer moving parts to maintain.
Q3: What size in diameter of turntable and how many load capacity turntable could you manufacture?

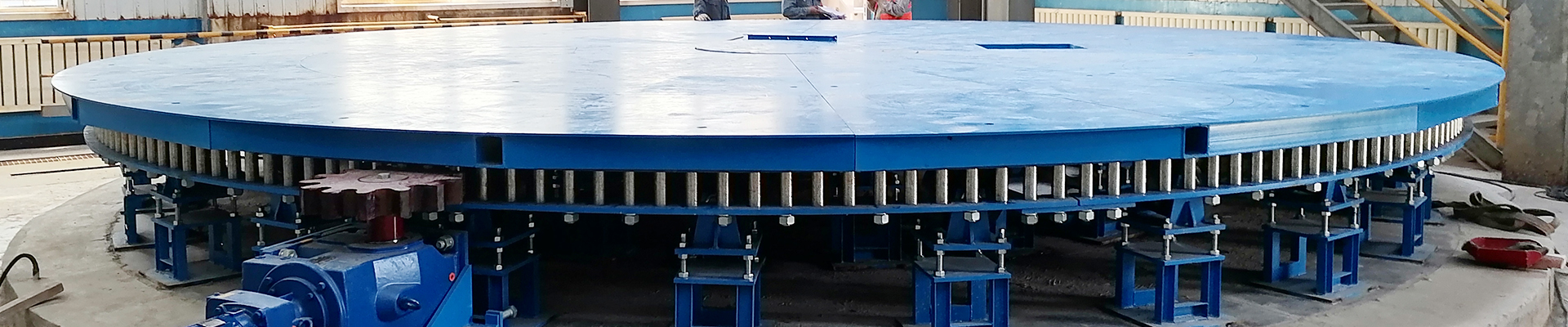

Weizhong can manufacture turntables from 3-meter to 60-meter and capable of accommodating loads weighting 500 KG to 1,000 metric tons.
