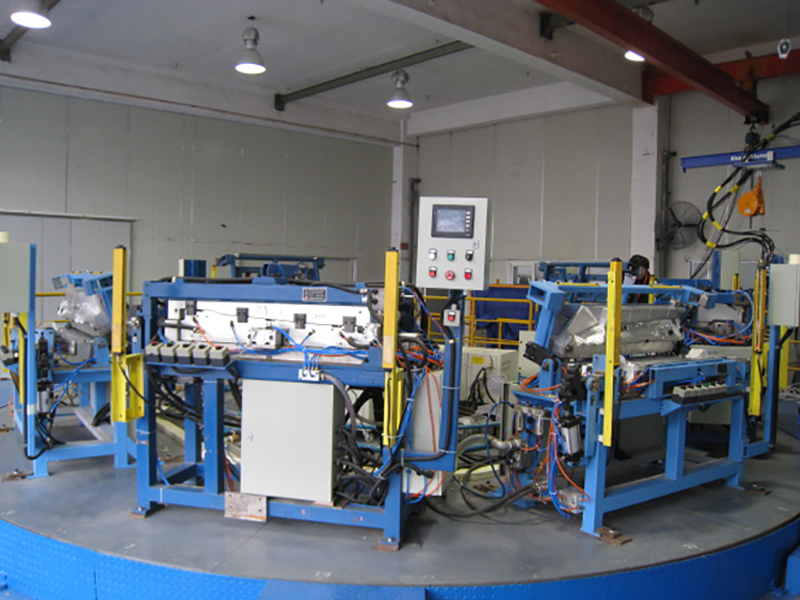

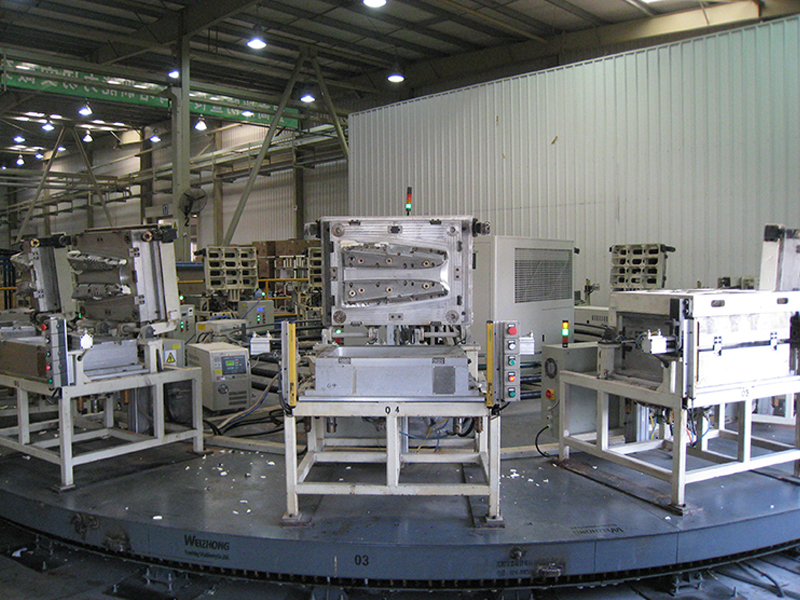

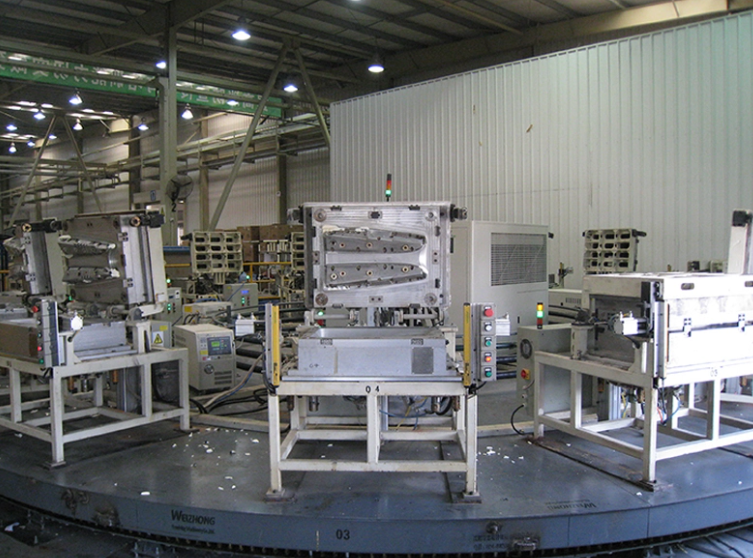

Weizhong rotary positioning turntables are high-efficiency spatial efficiency solutions designed to streamline industrial production and assembly lines. By consolidating multiple operational stages into a single rotating workstation, these platforms minimize equipment footprint and eliminate unnecessary material movement. Engineered for high-precision orientation, our turntables offer customizable rotation angles and speeds, making them indispensable for modern automated manufacturing environments looking to maximize throughput in limited floor space. With over 35 years of expertise in industrial rotation solutions, we deliver reliable performance that meets the rigorous demands of global industrial enterprises.
Optimizes factory floors by allowing multiple tasks to be completed in one centralized area, reducing your facility footprint by up to 40%. This eliminates the need for lengthy conveyor systems and separate workstations, freeing up valuable space for additional production capacity or storage. Our low-profile design (305mm height without top) ensures easy integration into existing production layouts without major modifications.

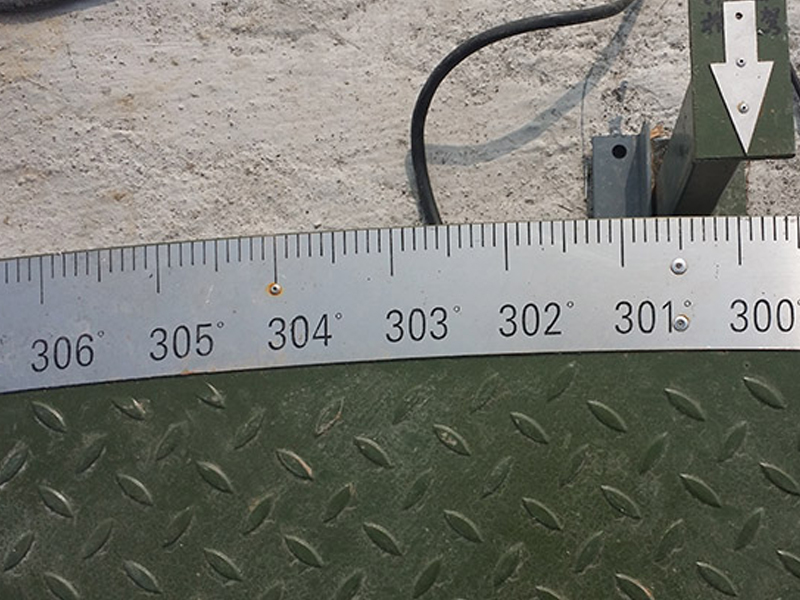

Features fully adjustable rotation speeds (0.2-1.0 RPM) and precise stop-angle control for consistent industrial accuracy, ensuring perfect alignment every time. This level of precision is critical for automated assembly processes, robotic welding, and quality inspection stations where even minor deviations can lead to costly defects. Variable frequency drive options allow for fine-tuning of rotation speeds to match specific production requirements.

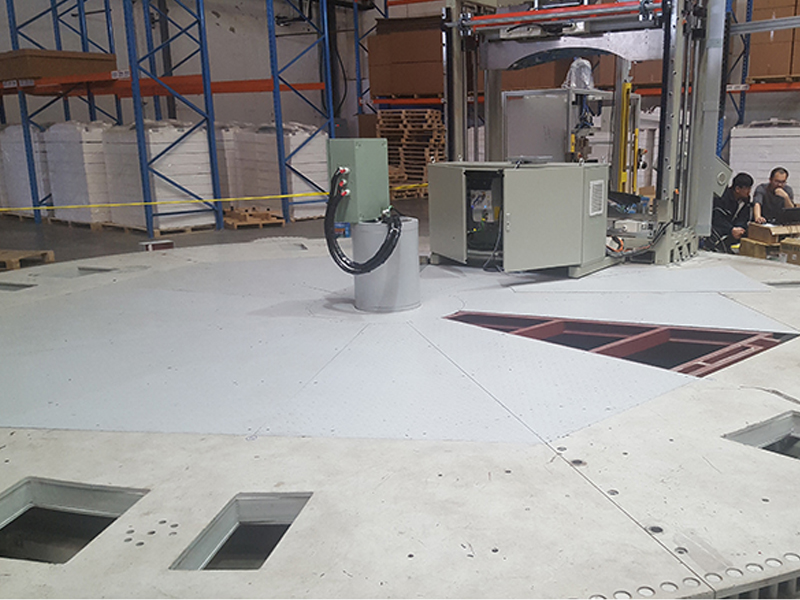

Uniquely equipped with central connections for air, electricity, and water, ensuring seamless power for tools at every station without tangled hoses or cables. The specialized central bearing swivel design allows continuous 360-degree rotation while maintaining uninterrupted utility supply, eliminating downtime caused by cable management issues.
Designed to keep personnel and adjacent equipment stationary while the workpiece rotates into position, reducing operator fatigue and increasing workplace safety. This ergonomic design minimizes unnecessary movement around the production floor, allowing workers to focus on value-added tasks rather than material handling.
Ideal for integration into PLC-controlled production lines requiring synchronized rotational movements. We provide optional PC Control and Motion Control interfaces that allow seamless communication with global industrial automation standards. This compatibility ensures your turntable works harmoniously with existing robots, conveyors, and manufacturing execution systems.
Constructed with heavy-duty steel and protected by rust-resistant primer and coatings, our turntables are designed for long-term reliability in demanding 24/7 industrial manufacturing environments. The rugged construction can withstand heavy loads, vibrations, and exposure to dust, moisture, and other harsh conditions commonly found in industrial settings.
The Weizhong Patented Pin-Gear Drive ensures smooth performance with minimal maintenance compared to traditional friction drives. Unlike friction drives that wear out over time and require frequent adjustments, our pin-gear system provides consistent torque and positioning accuracy throughout its lifespan, reducing your total cost of ownership.
Equipped with German NORD motor and gearbox systems (CE/UL certified) and Sweden Tele-Radio wireless remote controls for unmatched reliability. We source only the highest quality components from leading international manufacturers to ensure our turntables deliver consistent performance year after year.
Parameter | Industrial Value |
|---|---|
Diameter Range | 4.0m, 4.5m, 5.0m, 5.5m, 6.0m (Customizable) |
Height (without top) | 305mm (Low profile for easy integration) |
Speed Range | 0.2-1.0 RPM (Variable Frequency Drive available) |
Load Capacity | 4,000kg-8,000kg (Customizable for higher loads) |
Motor & Gearbox | German NORD system with CE/UL Certification |
Utility Access | Integrated Air, Water, and Electrical swivel connections at center |
Drive Mechanism | Weizhong Patented Pin-Gear Drive System |
Control System | Wireless Remote (Sweden Tele-Radio) or Hardwired PLC Interface |
Advanced Options | PC Control / Motion Control / Stop Position Accuracy Control |
Our rotary positioning turntables are essential for a wide range of industrial applications, including:
Automated assembly lines for consumer electronics and appliances
Heavy machinery manufacturing and assembly
Aerospace component processing and testing

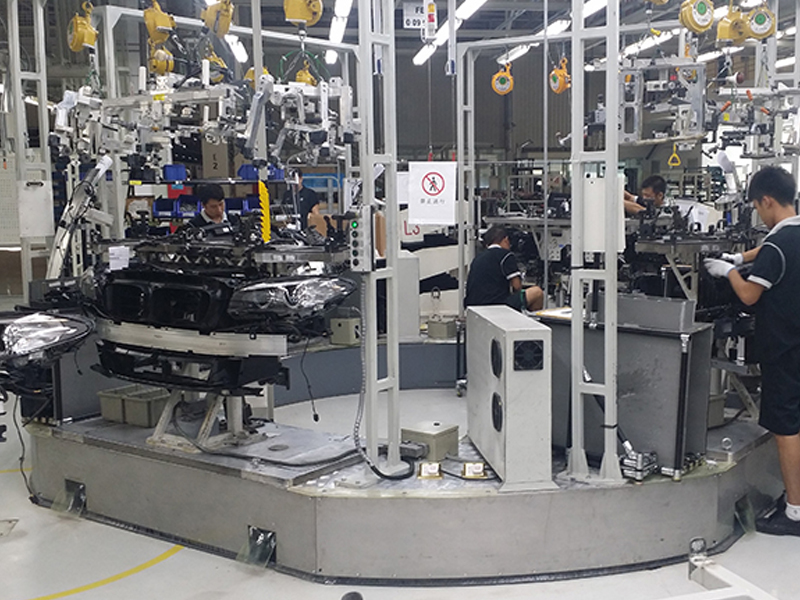

Automotive production and vehicle assembly
Logistics and material handling operations

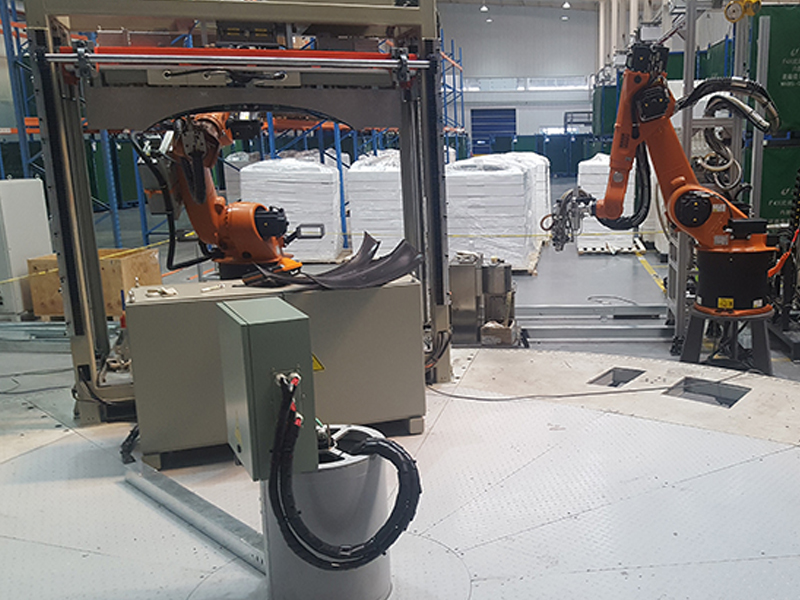

Welding and fabrication stations
Quality inspection and testing facilities
The turntable features a specialized central bearing swivel design. This allows high-pressure air, water, and electrical power to be supplied to the rotating top without tangling hoses or cables, enabling continuous 360-degree operation.
Yes. We provide optional PC Control and Motion Control interfaces that allow the turntable to communicate seamlessly with global industrial automation standards, including all major PLC systems. Our engineering team can also develop custom integration solutions to meet your specific requirements.
Absolutely. Built with industrial-grade steel and protected by rust-resistant primer and coatings, our turntables are designed for long-term reliability in demanding industrial settings. They can operate continuously 24 hours a day, 7 days a week, with minimal maintenance.
Yes. We offer comprehensive customization options to meet the unique needs of different industries and applications. This includes custom diameters, higher load capacities, specialized control systems, and additional utility connections. Our engineering team will work closely with you to design a solution that perfectly matches your production requirements.
At Weizhong, we don't just build turntables; we engineer spatial efficiency solutions. With over 35 years of experience, our rotary positioning turntables are the trusted choice for industrial enterprises worldwide. Transform your production line into a high-throughput, space-saving powerhouse today. Contact us to get a custom quote tailored to your specific industrial needs.
