Weizhong motion control turntables are engineered for automated rotational applications that require consistent positioning accuracy. These platforms support programmable movement patterns and integrate with existing industrial control systems, making them suitable for use in production lines, research laboratories, and vehicle testing facilities.
Equipped with variable frequency drive (VFD) technology, these turntables offer adjustable speed settings and precise directional control. The systems support full PLC and PC integration, enabling seamless synchronization with factory automation workflows and research equipment. With a positioning accuracy of ±0.2 degrees, they provide the level of control required for sensitive calibration and testing procedures.
Integrated control systems deliver exact angle adjustments, supporting tasks that require fine rotational control. The turntables offer 0-360 degree controlled positioning and unlimited continuous rotation capability, accommodating both fixed-angle operations and continuous process requirements.
Users can store custom rotation sequences and adjust speed settings via digital interface. The control boxes support advanced communication protocols, making them compatible with most industrial automation and SCADA software environments. This programmability allows the turntables to adapt to different vehicle types, product sizes, and process requirements.
Built with heavy-duty components, these turntables are designed for continuous operation in commercial and industrial settings. The drive system utilizes Weizhong's patented pin-gear technology, which provides smooth, low-jitter motion. All motors and gearboxes are sourced from German NORD and carry CE and UL certifications.
Parameter | Value |
|---|---|
Positioning Accuracy | ±0.2 degree |
Speed Range | 0.1-2.0 RPM (variable frequency control) |
Control Angle Range | 0-360 degree |
Revolvable Angle Range | Unlimited |
Available Diameters | 4.0m, 4.5m, 5.0m, 5.5m, 6.0m |
Height (without top) | 305mm |
Load Capacity | 4,000-8,000 kg |
Motor Power | 0.75KW / 1.1KW |
Power Required | AC220V / AC110V / AC380V |
Drive System | Weizhong Patent Pin-Gear Drive |
Control Options | PLC / PC Motion Control / Stop Position Control / Remote System |
Remote Control | Sweden Tele-Radio Remote control system |
Steel Coating | Rust resistant paint and primer / Hot-dipped galvanized |
Top Surface Options | 18mm thick plywood / 4mm thick checkered steel plate / 6mm thick checkered aluminum alloy |
These motion control turntables serve multiple industrial applications. In automotive manufacturing, they facilitate vehicle assembly and inspection processes by providing controlled access to all sides of the vehicle. In automotive testing facilities, they enable precise positioning for sensor calibration, crash test preparation, and aerodynamic analysis.

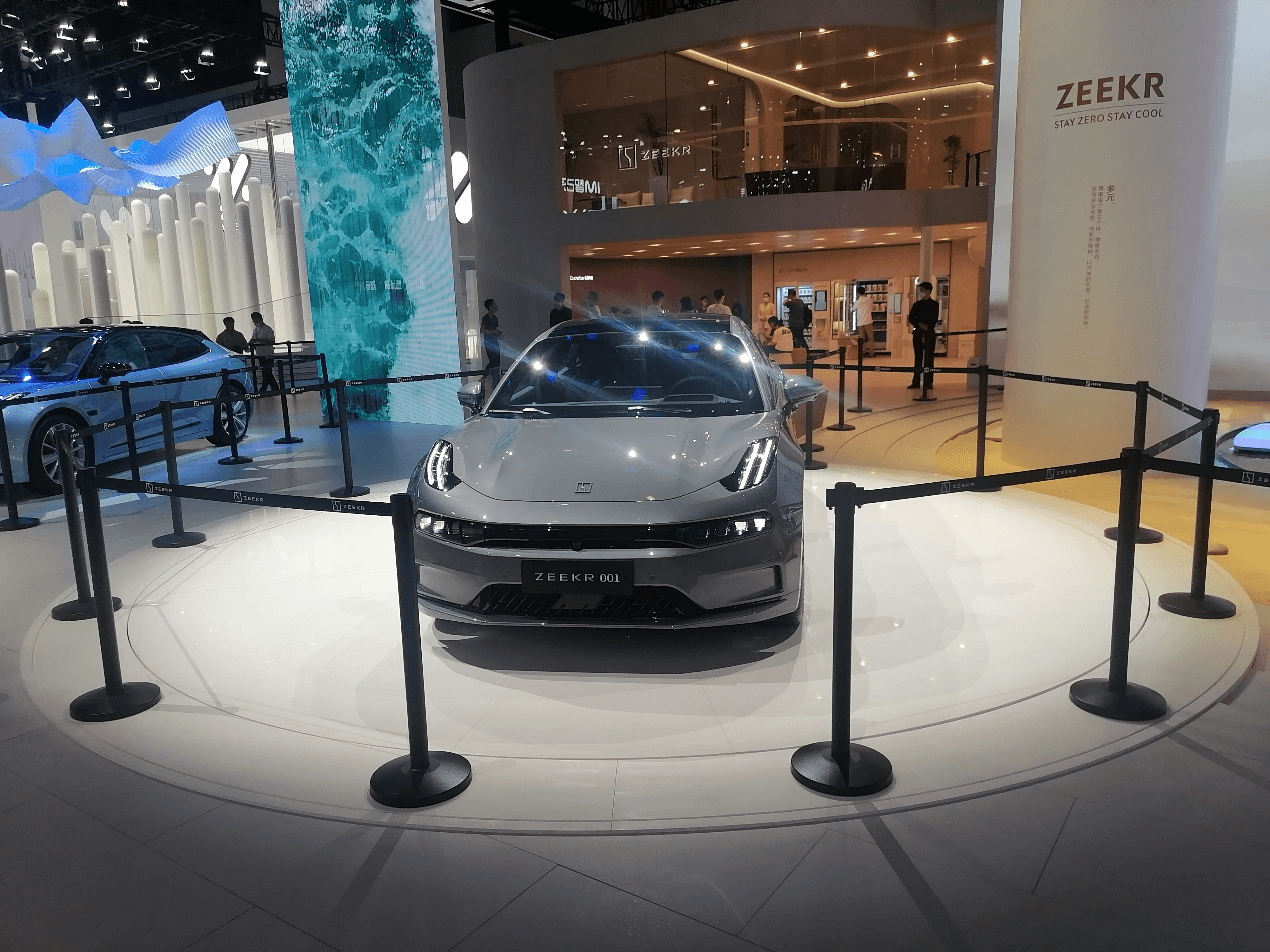

In research laboratories, the turntables support experiments that require controlled rotational movement of equipment or test subjects. They are also used in exhibition settings for automated vehicle displays, where programmable rotation sequences enhance visitor engagement while reducing manual labor.
The rotation speed ranges from 0.1 to 2.0 RPM, adjustable via variable frequency control.
Yes. The control boxes support advanced communication protocols, making them compatible with most industrial automation and SCADA software environments.
Yes. Built with heavy-duty German NORD motors and the patented pin-gear system, the turntable is designed for long-cycle operation in production and testing environments.
Standard top surface options include plywood, checkered steel, and aluminum alloy. Custom mounting points can be added for specialized sensors or laboratory equipment.
Weizhong provides comprehensive technical support and training for installation, operation, and maintenance of the turntable systems.
With over 20 years of experience in precision revolving machinery, Weizhong delivers motion control solutions that support commercial procurement needs across global industries. Our turntables are designed to streamline business operations, reduce manual intervention, and provide consistent performance in demanding industrial environments.
