For over 20 years, Weizhong Revolving Machinery has been a leading manufacturer of high-performance industrial railway turntables. Our versatile rail wagon turntables are engineered to efficiently change the direction of platform wagons and heavy carts in industrial environments, eliminating the need for complex track switching systems and significantly improving material handling efficiency. With diameters ranging from 4.0m to 6.0m and load capacities from 4,000kg to 8,000kg, our heavy-duty rail turntables deliver reliable performance in the most demanding industrial settings.

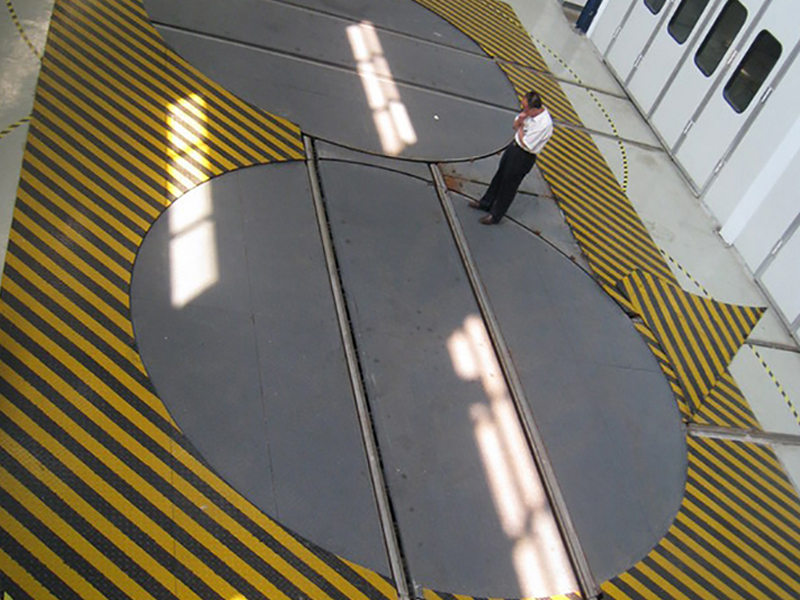

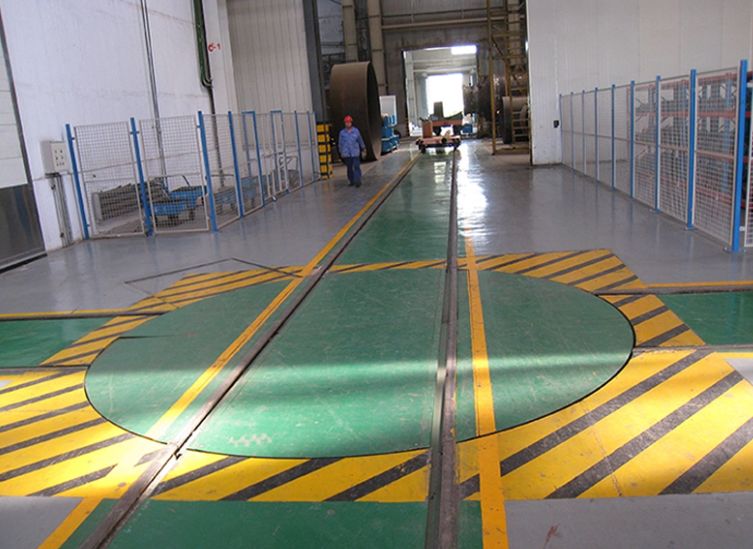

An industrial railway turntable is a specialized rotating platform designed to change the direction of rail-mounted vehicles such as platform wagons, transfer carts, and maintenance equipment. Unlike traditional track switching systems that require extensive infrastructure and multiple points of failure, industrial track turntables provide a compact, efficient solution for redirecting rolling stock.
Our railway turntables integrate seamlessly with both standard and custom rail layouts, allowing vehicles to rotate 360 degrees and stop precisely at any required angle. This flexibility makes them an essential component of modern material handling systems, enabling industrial facilities to optimize their workflow, reduce operational costs, and improve overall productivity.
At the heart of every Weizhong railway turntable lies our patented Pin-Gear Drive System, engineered specifically for heavy-duty industrial applications. Unlike friction-based drive systems that can slip under heavy loads or in the presence of industrial oils and moisture, our pin-gear design provides positive engagement and zero-slip rotation.
This advanced drive mechanism delivers exceptional torque even at low speeds, ensuring smooth, reliable operation when handling fully loaded wagons. The robust construction minimizes wear and tear, extending the service life of the turntable and reducing maintenance requirements for industrial facilities.
Accurate track alignment is critical for safe and efficient loading and unloading operations. Our railway turntables feature advanced precision alignment technology that ensures exact stops at 45°, 90°, 180°, or any custom angle required by your facility's layout.
This level of precision eliminates the need for manual adjustments and reduces the risk of derailments or collisions. The system is complemented by a Sweden Tele-Radio Wireless Control System, allowing operators to control the turntable safely from a distance while maintaining full visibility of the operation.
Weizhong railway turntables are designed to meet the needs of industrial facilities worldwide. Our power system supports global voltage standards from AC 110V to 480V, 50/60Hz, single or three phase, making them suitable for installation in any country.
All our turntables are equipped with German NORD Motors & Gearboxes, renowned for their reliability and durability. These motors carry CE and UL certifications, ensuring compliance with the strictest safety standards in Europe, North America, and Australia.
We understand that every industrial facility has unique requirements. That's why our railway turntables offer a range of customizable options to suit your specific needs:

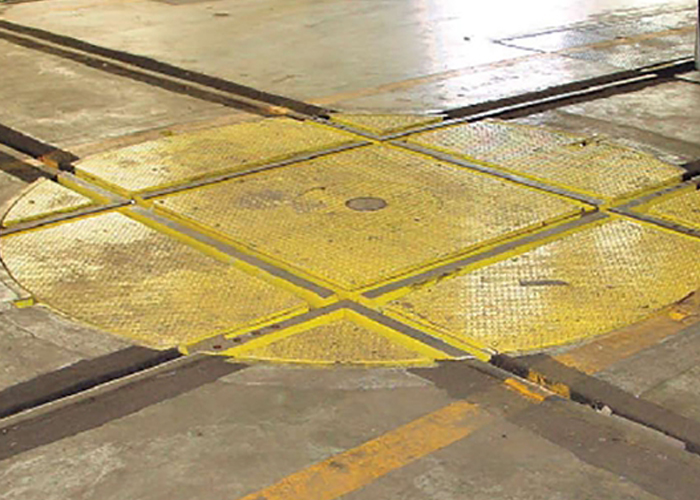

Surface Options: Choose from 18mm Plywood for general industrial use, 4mm Checkered Steel for heavy-duty and high-traction applications, or 6mm Aluminum Alloy for lightweight and corrosion-resistant environments
Control Options: Upgrade to PC Control, Motion Control, or advanced Stop Position Control systems for enhanced automation and integration with your existing production systems
Traditional track switching systems require extensive infrastructure, including multiple sets of points, crossings, and signal systems. These systems are not only expensive to install and maintain but also take up valuable floor space in your facility.
A single Weizhong railway turntable can replace 3-5 sets of track switches, simplifying your rail layout and reducing construction costs by up to 60%. The compact design allows you to make the most of your available space, enabling more efficient use of your production and storage areas.
Material handling bottlenecks are a major cause of production delays and increased operational costs in industrial facilities. Long, winding track layouts and inefficient vehicle routing can significantly slow down the movement of materials between production stages.
Our railway turntables allow you to create direct, efficient transport routes, reducing material transport time by 25-40% on average. This improvement in workflow efficiency translates directly into higher production output, shorter lead times, and increased profitability for your business.
Industrial material handling operations present significant safety risks, including vehicle collisions, derailments, and injuries to personnel. Traditional track switching systems require manual intervention, increasing the risk of accidents.
Weizhong railway turntables minimize the need for manual handling and reduce the number of vehicle movements required to transport materials. The precision alignment system ensures that wagons are always correctly positioned for loading and unloading, reducing the risk of accidents. Additionally, the wireless control system allows operators to work from a safe distance, further enhancing workplace safety.
Parameter | Engineering Value | ||||
|---|---|---|---|---|---|
Diameter Range | 4.0m | 4.5m | 5.0m | 5.5m | 6.0m |
Height (without top) | 305mm (Low profile for easy track integration) | ||||
Rotating Speed | 0.2 ~ 1.0 RPM (Adjustable via control box) | ||||
Load Capacity | 4,000kg ~ 8,000kg (Industrial Duty) | ||||
Motor System | 0.75KW / 1.1KW German NORD Motor & Gearbox with CE/UL | ||||
Power Required | AC 220V / 110V / 380V (Adaptive to global standards) | ||||
Drive Mechanism | Weizhong Patented Pin-Gear Drive System | ||||
Remote Control | Sweden Tele-Radio Wireless Control System | ||||
Surface Options | 18mm Plywood / 4mm Checkered Steel / 6mm Aluminum Alloy | ||||
Additional Options | PC Control / Motion Control / Stop Position Control | ||||

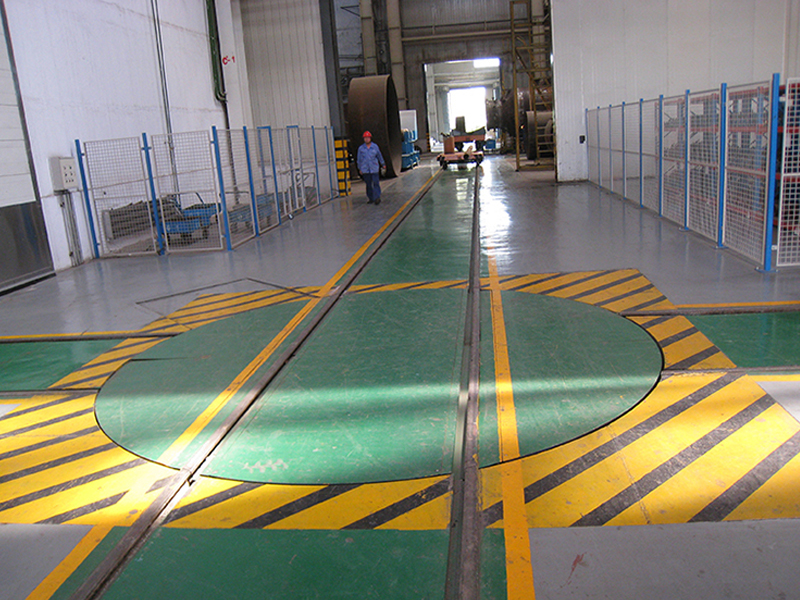

In automotive and heavy machinery assembly plants, our railway turntables allow platform wagons carrying partially assembled products to change direction seamlessly between different production stages. This eliminates the need for long, winding track layouts and reduces material transport time by up to 35%, enabling faster production cycles and higher output.

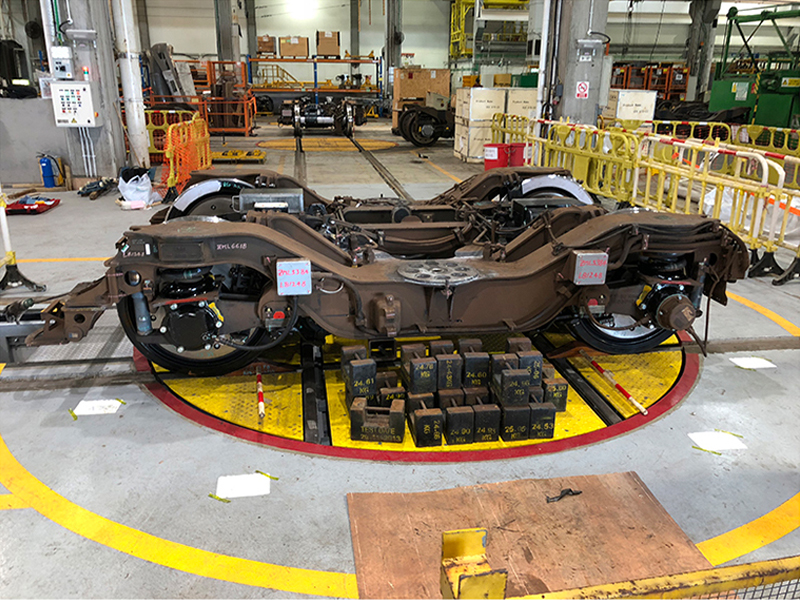

Railway workshops and maintenance yards rely on our turntables to efficiently redirect locomotives, carriages, and maintenance equipment. The precision alignment system ensures that vehicles are correctly positioned for servicing, reducing downtime and improving the efficiency of maintenance operations.
Warehouses and distribution centers use our railway turntables to optimize the movement of goods between receiving, storage, and shipping areas. The ability to quickly change the direction of rail wagons reduces congestion and improves the overall flow of materials through the facility.
In heavy industry facilities such as steel mills, mining operations, and chemical plants, our heavy-duty rail turntables handle the toughest material handling challenges. The robust construction and pin-gear drive system ensure reliable performance even in harsh industrial environments.
With over two decades of experience in designing and manufacturing industrial revolving machinery, Weizhong has established a reputation for quality, reliability, and innovation. Our team of experienced engineers uses the latest design and manufacturing technologies to create products that meet the highest international standards.
We have successfully installed thousands of turntables in industrial facilities around the world, serving a diverse range of industries including manufacturing, logistics, mining, and transportation.
We understand that reliable after-sales support is essential for industrial operations. That's why we have established a global after-sales support network to provide our customers with prompt, professional assistance whenever they need it.
Our support services include installation guidance, technical support, spare parts supply, and maintenance training. We aim to respond to all customer inquiries within 24 hours, ensuring that your operations experience minimal downtime.
At Weizhong, we don't believe in one-size-fits-all solutions. We work closely with our customers to understand their unique requirements and develop custom railway turntable solutions that meet their specific needs.
Whether you need a turntable with a non-standard diameter, higher load capacity, or specialized control system, our engineering team can design and manufacture a solution that perfectly fits your facility's layout and operational requirements.
It is primarily used in railway workshops, warehouses, and assembly lines to change the direction of platform wagons, significantly improving material transport efficiency and reducing manufacturing downtime.
Yes. With our advanced Stop Position Control, the turntable can stop precisely at 45°, 90°, 180°, or any custom angle required to align perfectly with your existing rail layout.
Weizhong supports global power inputs from AC 110V to 480V and utilizes German NORD motors with CE/UL certification, ensuring compliance with safety standards in Europe, North America, and Australia.
Our patented Pin-Gear drive provides high torque and zero-slip rotation. Unlike friction-based systems, it ensures reliable performance even when wagons are heavily loaded or the surface is exposed to industrial oil or moisture.

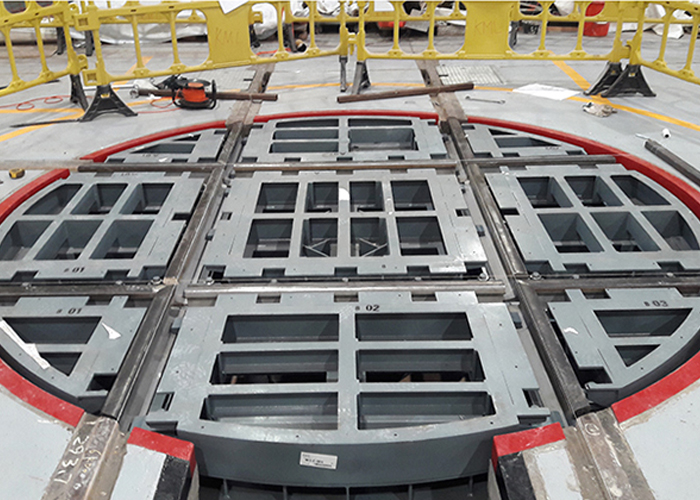

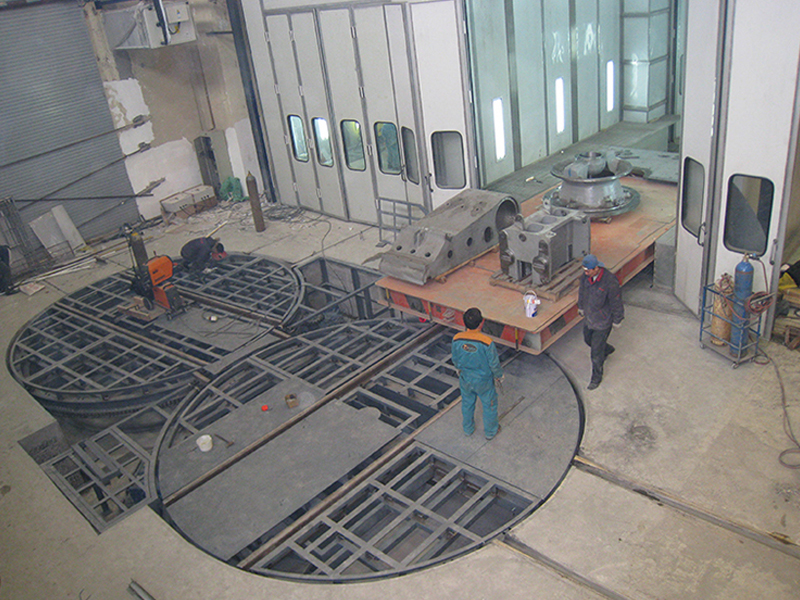

The installation time for a standard Weizhong railway turntable is typically 3-5 days, depending on the size and complexity of the installation. Our team provides detailed installation instructions and can also offer on-site installation support if required.
Ready to optimize your railway workflow with a high-performance Weizhong railway turntable? Request a free, no-obligation custom quote today. Our team of experts will work with you to design a solution that meets your specific requirements and budget.
