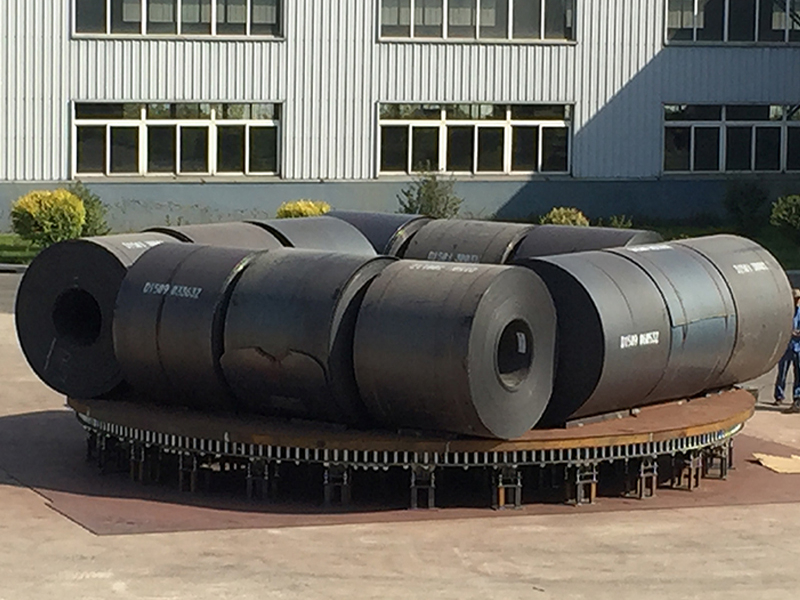

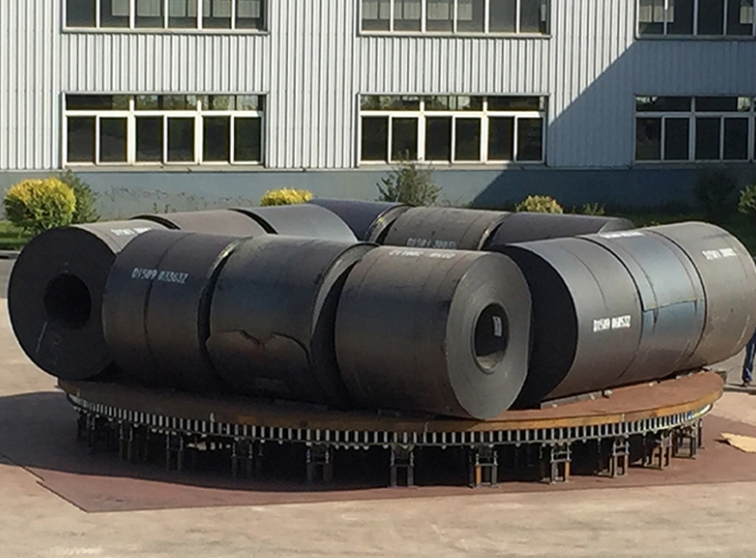

Weizhong Heavy-Duty Industrial Turntables serve as premium rotating platforms engineered for heavy load handling across factory yards, logistics hubs, construction zones and mining sites. Built with patented pin-gear drive structure and high-strength steel framework, these industrial rotating platforms support load capacity up to 100 tons, solving space limitation and heavy equipment maneuvering difficulties for enterprise facility operation. Designed for long-term outdoor and indoor harsh working conditions, the turntable delivers steady rotation, enhanced site efficiency and minimized manual operation risks for large-scale industrial projects.
Our heavy-duty turntable is purpose-built to rotate oversized vehicles, large construction machinery and mining equipment in limited working spaces. Unlike ordinary rotating platforms, this industrial grade turntable adopts optimized mechanical structure to bear extreme weight without deformation or unstable operation.
Available in multiple diameter specifications from 9m to 24m, it matches different site layout and equipment size demands. Every unit follows strict industrial manufacturing standards, suitable for permanent installation in production workshops, warehouse loading areas and outdoor construction bases.
The exclusive pin-gear drive structure replaces traditional friction drive modes, offering stronger bearing capacity and better wear resistance. It maintains smooth low-speed rotation under full load, reduces mechanical impact and extends overall service life. This engineered drive design cuts daily wear and lowers long-term running expenses for facility operators.
The turntable surface adopts 6mm to 8mm diamond tread steel plate, providing stable anti-slip performance for heavy vehicles and machinery. The whole platform is welded with high-strength steel materials, resisting pressure distortion and structural fracture under long-time heavy load operation.
Equipped with industrial precision bearings, the platform realizes low-friction flexible rotation. Even under maximum rated load, it keeps stable running with small runout, saving power consumption and ensuring consistent rotation speed for daily working cycles.
All metal parts adopt hot-dipped galvanization and rust-resistant primer finish. The professional surface treatment adapts to rainy, dusty and high-corrosion outdoor environments, avoiding rusting and aging and reducing frequent maintenance needs.
Parameter | Value |
|---|---|
Diameter Range | 9m / 12m / 15m / 18m / 24m |
Platform Height | 500mm / 550mm |
Load Capacity | 30 Ton – 100 Ton |
Rotating Speed | 0.1-0.5 RPM / 0.1-0.25 RPM |
Matching Motor Power | 4.0KW to 22KW |
Drive Type | Industrial patented pin-gear drive system |
Control Mode | Sweden Tele-Radio wireless remote / PLC automatic control |
Surface Craft | Hot-dipped galvanized + anti-rust paint coating |
Large industrial vehicles and heavy machinery no longer need wide turning radius. The turntable completes direction rotation in a fixed small area, effectively saving yard and warehouse space and making overall site layout more compact and reasonable.
It realizes fast positioning and direction adjustment of heavy equipment, replacing time-consuming manual driving and repeated reversing. The whole rotation process is finished in a short time, accelerating vehicle dispatch and equipment handover progress on site.
With remote wireless control and automatic program control modes, operators can complete rotation work in a safe distance. It avoids safety hidden dangers caused by manual close-range command and complex vehicle reversing operation.
The pin-gear drive structure has stable mechanical performance and low wear rate. Combined with anti-corrosion surface technology, the whole machine needs only simple routine inspection, lowering later maintenance frequency and overall operating cost.
Ideal for loading and unloading yards, helping logistics trucks complete fast direction conversion, improving vehicle entry and exit efficiency and relieving yard traffic pressure.
Suitable for rotating excavators, cranes and engineering vehicles in narrow construction areas, no need to occupy extra land for turning routes.
Adapt to dusty and complex mining environment, supporting rotation of large mining vehicles and heavy mining machinery with stable load-bearing and durable performance.
Used for large mechanical assembly and equipment debugging, assisting precise rotation positioning of heavy workpieces and improving production and assembly convenience.
It is applicable to large industrial machinery, engineering vehicles, mining equipment and heavy logistics trucks. Diameter and load-bearing parameters can be adjusted according to actual equipment size and weight.
Yes. Hot-dipped galvanization and anti-rust coating enable the platform to adapt to wind, rain and dust outdoor conditions, keeping stable performance for long-term open-air use.
Support PLC interface access, which can be linked with on-site automatic logistics and production lines to realize integrated synchronous operation of the whole system.
Apart from standard specifications, we support non-standard diameter, load capacity and control mode customization according to actual site condition and project demands.
With more than 30 years of experience in heavy rotating equipment research and production, the team has accumulated mature engineering design capability, familiar with various complex site layout and heavy load working demands.
Adopt German certified motor and Sweden Tele-Radio wireless control parts, matching with self-developed pin-gear drive technology, balancing stability, durability and precise control performance.
From parameter selection, site scheme design to production, delivery and after-sales guidance, we provide full-process supporting service for enterprise project users, matching the most suitable turntable solution for different industrial scenarios.
If you have demands for site layout transformation, heavy equipment rotation optimization or standard model selection, contact our professional engineering team now. We provide free scheme evaluation, parameter matching and personalized quotation service, helping you select the most cost-effective heavy-duty industrial turntable for your project.
