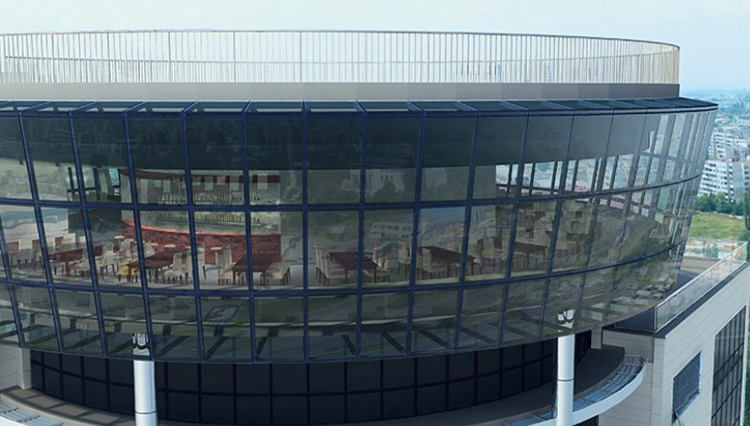

Weizhong Revolving Machinery has designed and manufactured revolving platforms for over 20 years. Our media-ready revolving restaurants are purpose-built for television, film, and live broadcasting applications. These systems combine high-altitude dining functionality with media production capabilities, providing 360-degree panoramic backdrops for cameras. The platforms are engineered to meet the specific requirements of professional media environments, with a focus on stable operation and minimal audio interference. They can be customized for permanent installation in TV towers or modular setup for studio film sets.
Our revolving platforms incorporate several features designed for media use. First, they operate at noise levels under 55dB, which allows for live recording without audio interference. This is achieved through precision engineering and specialized motor systems. Second, the rotation speed is adjustable from 45 to 180 minutes per round with stepless control, enabling slow cinematic sweeps or faster-paced segments as needed. Third, the patented pin-gear drive mechanism ensures vibration-free rotation, which is essential for producing clear, steady camera shots. Finally, the platforms have a load capacity of 300kg per square meter, which can support full camera crews, lighting rigs, and production talent simultaneously.
Media Parameter | Standard Value / Spec |
Diameter | 10m to 60m (Tailored to Tower/Studio) |
Load Capacity | 300kg per square meter |
Rotation Speed | 45 - 180 mins/round (Stepless Control) |
Drive Mechanism | Weizhong Patent Pin-Gear (Zero Slippage) |
Flatness/Circularity | Tolerance within 5mm |
Noise Level | Less than 55 dB (Studio Grade) |
Safety Surface | Double-layer 18mm Plywood (Anti-Slip) |
These revolving platforms serve multiple commercial applications. They are most commonly installed in TV towers, where they function as both dining venues and broadcast locations. They provide a dynamic setting for news segments, talk shows, and special event broadcasts. Additionally, modular versions are used in film studios to create rotating sets for movie and television production. They are also suitable for large-scale live events, such as award shows and concerts, where panoramic camera angles are required.
The pin-gear drive mechanism is a critical component of our media-ready revolving platforms. Unlike friction drives, which rely on surface contact and can experience slippage or jitter, the pin-gear system uses positive mechanical engagement. This ensures consistent rotation speed and position accuracy, which is important for long-exposure shots and timed camera pans. The pin-gear design also reduces wear and tear on the system, extending its service life and lowering maintenance requirements. This technology has been developed and refined by Weizhong over two decades of operation.
It is a specialized rotating platform designed for both media production and high-altitude dining. It provides a dynamic set piece for TV shows and live broadcasts, allowing for 360-degree panoramic views without moving the cameras.
Yes. Our systems use German-engineered motor systems and the patented pin-gear drive, resulting in noise levels lower than industrial turntables. This makes them suitable for live audio environments.
Yes. The platform is constructed with a reinforced steel frame designed to handle both heavy-duty filming equipment and personnel safely.
Unlike friction drives that can slip or jitter, the pin-gear system offers positive mechanical engagement. This ensures that every rotation is consistent, which is vital for long-exposure shots or timed camera pans.
Ready to discuss your project requirements? Request a custom quote or contact our engineering team via WhatsApp at +86-13940565574. We provide engineering support for TV towers and media productions worldwide.
