Weizhong, a trusted industrial rotation manufacturer with 35+ years of expertise, delivers customizable heavy vehicle turntables for logistics hubs, warehouses and urban construction sites. Supporting 100+ ton loads via patented pin-gear or hydraulic drives, our intelligent PLC-controlled platforms eliminate complex maneuvers, boost operational efficiency and ensure reliable heavy-duty performance.

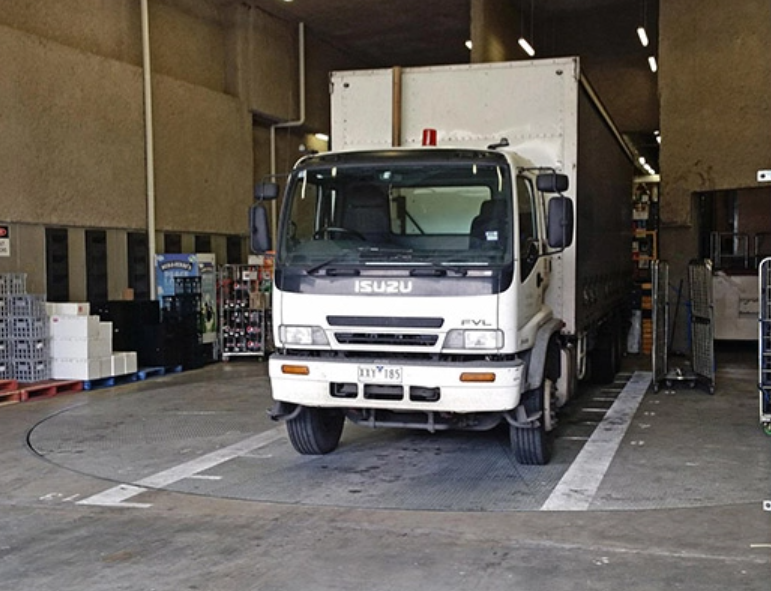

The Weizhong customizable heavy vehicle turntable provides a high-torque rotation solution for lorries and heavy machinery. Designed for logistics hubs, industrial warehouses, and tight urban construction sites, this equipment enables vehicles to turn within their own length. The turntable supports vehicles weighing from 30 tons to over 100 tons, using either a patented pin-gear electric drive system or a hydraulic power unit. With 35 years of manufacturing experience in Shenyang, China, Weizhong produces rotating machinery for commercial procurement and industrial applications worldwide.
This truck turntable eliminates the need for complex multi-point turns in confined spaces. By reducing vehicle maneuvering time, it helps improve operational efficiency at loading docks and industrial facilities. The design also minimizes tire and transmission wear on heavy vehicles, lowering long-term maintenance costs for business operations.
Specification |
Engineering Value / Detail |
Diameter Range |
10m to 35m (customized for heavy trucks) |
Load Capacity |
30 Tons to 100+ Tons (heavy-duty industrial grade) |
Drive System |
Weizhong Pin-Gear (Electric) or Hydraulic Power Unit |
Control System |
Intelligent PLC with Touchscreen Interface |
Safety Protection |
Overload Protection, Emergency Stop, Barriers & Sensors |
Surface Finish |
High-Traction Anti-Skid Steel Plate |
Operational Noise |
Less than 65 dB |
Compliance |
ISO9001 Quality Management Standards |
Two drive systems are available to match different operational requirements. The electric pin-gear drive uses energy-efficient high-torque motors, suitable for indoor environments where noise levels are a consideration. The hydraulic power unit is designed for applications requiring maximum load capacity and continuous industrial cycles. Both systems provide consistent rotation performance across the specified load range.
The turntable features an intelligent PLC control system with a touchscreen interface. Operators can adjust rotation speed, direction, and positioning according to specific operational needs. The control system supports integration with automated conveyor systems and robotic logistics equipment, allowing for streamlined workflow management in modern industrial facilities.
Multiple safety features are integrated into the turntable design. These include overload protection that prevents operation beyond the rated capacity, an emergency stop button for immediate shutdown, and physical barriers with proximity sensors that detect obstacles during rotation. The surface is constructed from high-traction anti-skid steel plate to prevent vehicle slippage.
The turntable allows heavy vehicles to rotate 360 degrees within their own footprint. This design eliminates the need for large turning radii, making it possible to operate heavy lorries in narrow urban streets and compact warehouse layouts. By reducing the space required for vehicle maneuvering, facilities can allocate more area to storage or production activities.
Logistics Centers: Improve loading dock turnover by enabling trucks to position quickly for loading and unloading
Mining & Construction: Facilitate safe rotation of heavy dumpers and machinery in confined underground and mountain sites
Urban Warehousing: Allow heavy lorry access to narrow streets and internal loading bays that cannot accommodate traditional turning maneuvers
Automotive Testing: Provide high-precision rotation for heavy vehicle inspection and exhibition display purposes
Yes. The PLC-based intelligent control system is engineered for seamless integration with existing warehouse management systems and industrial automation equipment. Technical documentation and support are provided to assist with integration projects.
We offer 24/7 technical support, remote troubleshooting services, and modular spare parts supply. This support structure helps minimize downtime for enterprise customers operating in different time zones.
Electric pin-gear drives are appropriate for indoor use where low noise and minimal maintenance are priorities. Hydraulic drive units are recommended for applications involving extreme load capacities and high-intensity operational cycles. Our engineering team can provide recommendations based on your specific site conditions and operational requirements.
Weizhong revolving machinery is manufactured in accordance with ISO9001 standards. For more information about customizing a heavy vehicle turntable for your industrial operations, contact our technical sales team.
