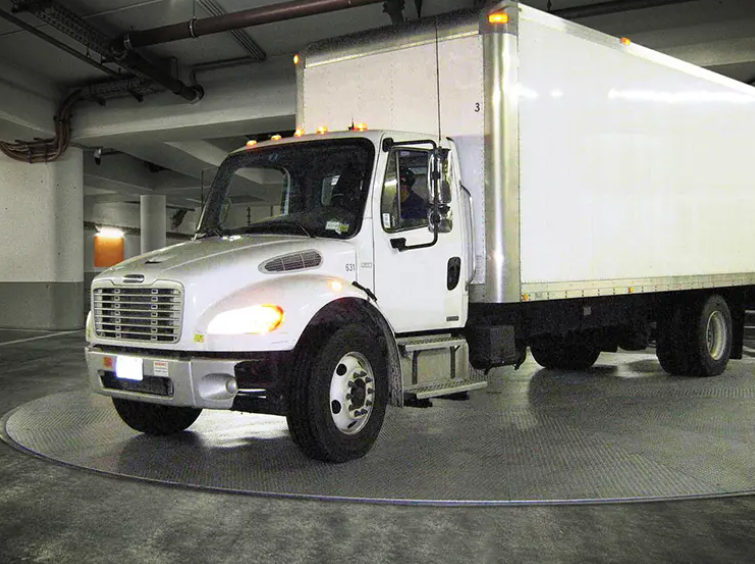

Weizhong's lorry turntables enable efficient vehicle maneuvering in confined areas such as construction sites and warehouses. These systems allow lorries to complete U-turns without reversing, reducing turnaround time and improving site logistics. Available in diameters from 9 to 24 meters with load capacities between 30 and 100 tons, the turntables feature adjustable rotation speeds and utilize a pin-gear drive system. Controlled through Sweden Tele-Radio remote systems, they also offer customizable features to meet specific site requirements.
Diameter | 9-meter | 12-meter | 15-meter | 18-meter | 24-meter |
Loading Capacity | 30 tons | 40 tons | 60 tons | 80 tons | 100 tons |
Motor Power | 4.0KW | 11KW | 18.5KW | 15KW | 22KW |
Rotating Speed | 0.1-0.5 RPM | 0.1-0.5 RPM | 0.1-0.5 RPM | 0.1-0.25 RPM | 0.1-0.25 RPM |
Drive System | Weizhong Patented Pin-Gear Drive System | ||||
Power Required | 3 phase 380V AC - 480V AC (50/60Hz) | ||||
Top Surface | 6mm-8mm diamond tread steel plate | ||||
Control System | Sweden Tele-Radio Remote Control / PC / Motion Control | ||||
Finish | Anti-corrosion Primer & Paint / Hot-dipped galvanized | ||||
The turntables provide 360-degree continuous rotation in both directions, allowing seamless maneuvering for long lorries in narrow construction zones. This feature eliminates the need for blind-spot reversing, which is a common cause of accidents in confined work areas.
Our patented pin-gear drive system delivers consistent rotation speeds up to 0.5 RPM. The system operates with low noise levels and optimized energy consumption, ranging from 4.0KW to 22KW depending on the model and load.
By removing the need for manual marshalling during complex vehicle turns, these turntables reduce the risk of site accidents involving pedestrians and moving vehicles. The remote control system allows operators to position themselves at safe distances while controlling the turntable.
All steel components are treated with either rust-resistant primers and paint or hot-dipped galvanization. These finishes provide protection against mud, rain, and heavy industrial wear encountered in construction site environments.
Lorry turntables find use in various commercial operations where space is limited. Primary applications include construction sites, distribution centers, warehouses, loading docks, and manufacturing facilities. They accommodate vehicles ranging from delivery vans to heavy construction machinery.
Our turntables are designed for a wide range of vehicles, from delivery trucks to 100-ton heavy lorries. Diameters range from 9m to 24m to fit various wheelbases and vehicle configurations.
The turntables operate on a 3-phase 380V AC - 480V AC power supply. Energy consumption varies by model, ranging from 4.0KW for the 9-meter model to 22KW for the 24-meter model.
Yes. All steel components receive corrosion-resistant treatments to withstand outdoor conditions. The diamond tread steel plate surface provides traction for vehicle tires in wet or muddy conditions.
Yes, the patented pin-gear drive system allows for 360-degree continuous rotation in both clockwise and counterclockwise directions.
With 35 years of engineering expertise in industrial rotation systems, Weizhong provides lorry turntable solutions for commercial procurement worldwide. We offer full customization of sizes and load capacities to address specific logistics challenges at your site. Our products are installed in diverse industries across multiple countries, supporting various industrial applications.
