These rotating panoramic platforms create immersive viewing experiences for commercial and public venues. The patented Pin-Gear drive system ensures consistent, jitter-free rotation that allows visitors to observe every detail of their surroundings without distraction. With 35+ years of manufacturing expertise in Shenyang, China, Weizhong delivers high-precision rotating solutions that integrate with modern architectural designs.
The system supports full customization to match specific building dimensions and design requirements. It can be installed in both new construction projects and existing structures, with engineering teams providing tailored solutions for each project. The platforms are manufactured under ISO 9001 certified processes to ensure consistent performance across all installations.
Specification | Engineering Value |
Diameter Range | 10m to 60m (Fully Customizable) |
Load Capacity | 300kg per square meter |
Rotation Speed | 45 to 180 minutes per full rotation (Variable Speed Control) |
Drive System | Weizhong Patented Pin-Gear System |
Motor Power | 0.55KW to 3.0KW |
Operational Noise | Less than 55 dB |
Precision | Flatness & Circularity < 5mm |
Top Surface | Double-layer 18mm Plywood |
The Pin-Gear drive system eliminates the slippage common in traditional friction drives, providing consistent torque throughout the rotation cycle. This design reduces component wear and extends the system's service life, resulting in lower long-term maintenance costs for venue operators. The system maintains uniform speed even under varying load conditions.
Operating at less than 55 dB, these platforms produce minimal noise that does not interfere with conversation or the dining experience. This makes them suitable for quiet environments such as fine dining restaurants, museums and cultural exhibition halls where ambient noise must be kept to a minimum.
Each platform is engineered to fit specific architectural floor plans, ensuring seamless integration into the building's design. The modular construction allows for flexible installation in spaces with unique layouts or structural constraints. This adaptability makes the system suitable for both circular and non-circular venue designs.
The platforms achieve flatness and circularity tolerances of less than 5mm, providing a stable surface for furniture, fixtures and displays. The double-layer 18mm plywood top surface creates a rigid base that supports heavy loads without deflection, ensuring safe operation even during peak occupancy periods.

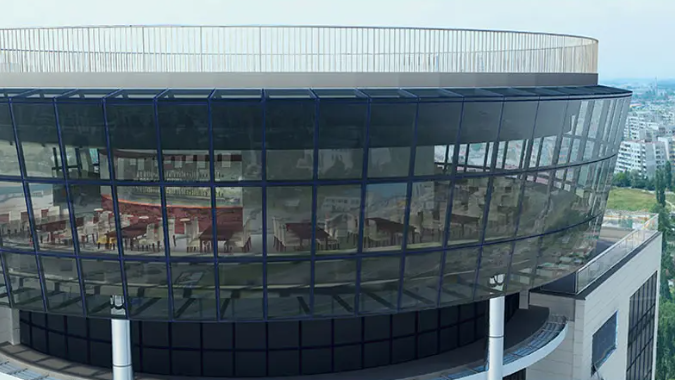

These turntables create signature dining experiences in luxury hotels and high-rise restaurants, offering guests changing views of the city skyline throughout their meal. This unique feature helps venues differentiate themselves and attract both local and international visitors.
The platforms provide dynamic display solutions for museums and cultural centers, allowing visitors to view artifacts and exhibits from all angles without repositioning. This enhances engagement and allows for more efficient use of exhibition space.
Installed in tourist landmarks and observation towers, these automated platforms deliver 360-degree panoramic views of natural and urban landscapes. They improve visitor flow and allow more people to enjoy unobstructed views simultaneously.
For wedding venues and corporate event spaces, rotating platforms create distinctive stages and seating areas that add a memorable element to special occasions. The variable speed control allows operators to adjust rotation to match the event's pace and atmosphere.
Weizhong provides comprehensive support for all installations worldwide. This includes long-term video technical assistance, detailed maintenance manuals and on-site support when required. Engineering teams work closely with clients throughout the design, installation and commissioning process to ensure optimal system performance.
The system supports 300kg per square meter, which accommodates standard restaurant furniture, fixtures and full occupancy by guests. The double-layer plywood surface provides additional structural stability for heavy items.
Yes, the platforms feature variable speed control that allows a full rotation to be set between 45 and 180 minutes. Operators can adjust the speed based on venue requirements and guest preferences.
The Pin-Gear system is designed for high-duty cycles with minimal wear. Regular maintenance includes periodic lubrication and visual inspections, as detailed in the provided maintenance guide. Technical support is available for all maintenance procedures.
Yes, the modular design allows for installation in both new construction and existing buildings. Engineering teams conduct structural assessments to ensure compatibility with the building's existing framework and provide customized installation solutions.
