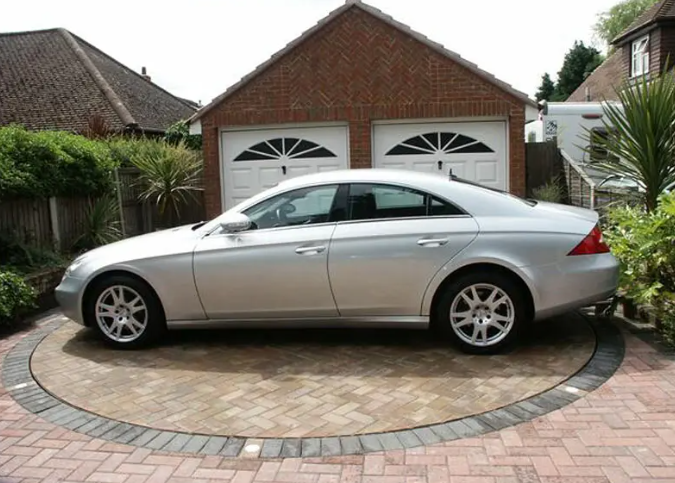

Weizhong’s premium car rotation platform transforms narrow garages and tight driveways into highly functional parking spaces, eliminating tedious multi-point turns and reversing risks. Leveraging patented Pin-Gear drive technology, it delivers 0.01° rotational accuracy and whisper-quiet performance suitable for daily residential use. The modular bolt-together steel structure supports heavy SUVs and light trucks, with customizable surface finishes including checkered steel, pavers and stone to match property aesthetics. It supports global voltage standards from 110V to 480V, with remote control for effortless operation by property owners and commercial facility managers.
Weizhong Revolving Machinery, a revolving equipment manufacturer founded in 1991, designs and produces car rotation platforms for narrow driveways, residential garages, and commercial display venues. With over 35 years of industry experience, the company applies a proprietary pin-gear drive mechanism to its turntable products, addressing common vehicle maneuvering challenges in limited spaces. Its solutions are adopted by research institutions including CETC and commercial clients across multiple sectors.
Unlike conventional friction-drive turntables, this car rotation platform uses a patented pin-gear drive structure. The drive system achieves a rotation accuracy of 0.01 degrees, supporting smooth, low-vibration operation. This design reduces component wear caused by long-term friction, extending the service life of core moving parts, and delivers lower operational noise than standard friction-drive alternatives.
The platform supports 360-degree vehicle rotation, allowing drivers to exit in a forward direction. This function reduces the need for multi-point turning in narrow access areas, lowering collision risks during parking and exit. For commercial venues like automotive showrooms, steady rotation supports continuous vehicle display without interruptions from uneven movement.
The vehicle rotation platform adopts a modular, bolt-together steel structure made from high-strength steel. This assembly method reduces on-site construction work, as it does not require extensive floor modification during installation. The steel frame distributes vehicle weight evenly across the platform surface, maintaining structural stability under regular loading cycles.
The platform accommodates common passenger vehicles including sedans, SUVs, and light trucks. Load-bearing components are arranged to disperse weight across the entire platform base, supporting consistent structural performance with daily use. Its low-profile design allows vehicles to enter and exit without steep inclines, reducing operation difficulty.
For private residential garages, the N510 configuration with an internally mounted motor is recommended when long-term maintenance access and protection of premium floor finishes are key project considerations. Its 510mm structural depth provides service clearance beneath the platform, allowing qualified technicians to inspect and maintain the drive components from the pit area. When the foundation and maintenance access are designed according to the approved drawings, servicing can be carried out without removing the stone, concrete, paver, or other finished surface installed above the turntable.
The automotive turntable offers configurable surface finishes to match different site styles. Available options include diamond plate, interlocking pavers, and stone finishes, allowing the platform to align with existing driveway, garage, or showroom flooring. Platform dimensions are customizable, with options for single-vehicle units and larger units for multi-vehicle or showroom display use.
The platform fits a range of use cases. For residential properties, it addresses maneuvering challenges in narrow driveways and single-car garages. For commercial applications, it serves automotive showrooms, parking garages with limited turning radius, and vehicle exhibition venues. It also works for mixed-use properties requiring both daily parking and occasional vehicle display.
Parameter Category | Specification |
|---|---|
Drive mechanism | Proprietary pin-gear drive |
Rotation accuracy | 0.01° |
Main structure material | High-strength steel |
Structure type | Modular bolt-together design |
Recommended residential configuration | N510 with internally mounted motor |
Structural depth | 510mm |
Maintenance access | Under-platform pit access without removing the finished top surface, subject to approved foundation and access design |
Voltage compatibility | 110V - 480V |
Frequency compatibility | 50Hz / 60Hz |
Surface finish options | Diamond plate, pavers, stone (customizable) |
Size range | Customizable per site requirements |
Suitable vehicle types | Sedans, SUVs, light trucks |
The modular design of the car turntable allows all components to be packed into standard shipping containers. This format supports both ocean and air freight for international orders, helping control logistics costs and reducing transit damage risk. The bolt-together assembly allows on-site setup without specialized heavy lifting equipment in most cases.
For global clients, the company provides detailed installation resources including high-definition 3D instructional videos and full technical manuals. The engineering team based in Shenyang offers real-time remote technical support to assist local contractors during installation, covering assembly guidance, electrical checks, and initial operation testing.
Yes. All control systems and motors are customized to match the voltage and frequency requirements of the destination region. The platform supports voltage inputs from 110V to 480V, and both 50Hz and 60Hz power frequencies, to enable safe operation in most countries and regions.
The turntable uses a modular bolt-together structure that allows full disassembly for transport. All components are sized to fit inside standard shipping containers, making them compatible with standard ocean and air freight services. This design also simplifies customs clearance procedures for cross-border orders.
Yes. The company provides comprehensive installation documentation and 3D visual guidance for all clients. Its in-house engineering team delivers real-time remote support throughout the installation process, to help local contracting teams complete setup and initial commissioning.
For private garages with stone, concrete, paver, or other high-value surface finishes, the N510 configuration with an internally mounted motor is recommended. Its 510mm structural depth provides maintenance clearance beneath the platform, allowing qualified technicians to access the drive system from the pit area without removing the finished surface above, provided that the foundation and service access are constructed according to the approved project drawings.
