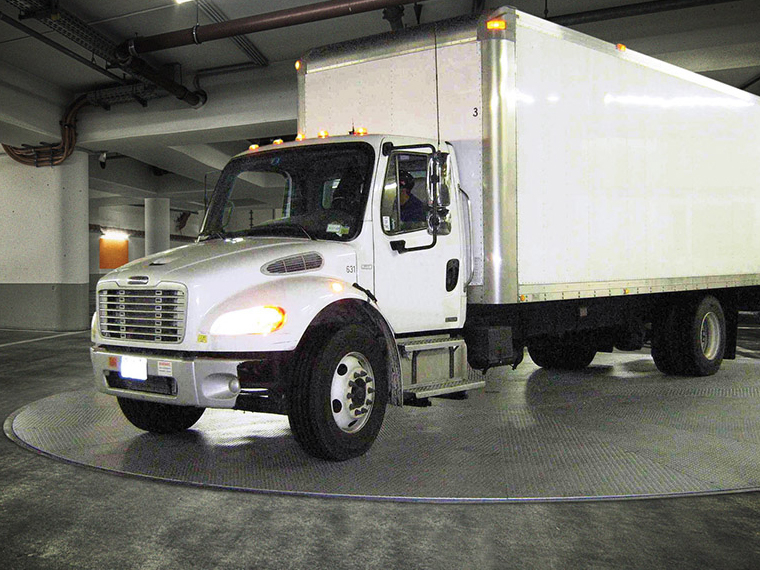

● 360° Rotation: The Lorry Turntable offers full 360-degree rotation, allowing vehicles to maneuver with ease in tight spaces. It's ideal for reversing long distances or turning in confined areas.
● High-Speed Rotation: With a speed of up to 0.5 RPM, this turntable provides quick and efficient vehicle movements, helping speed up the loading and unloading process.
● Reliable Drive System: Featuring Weizhong’s patented Pin-Gear Drive System, the turntable runs smoothly, requiring minimal maintenance, and operates quietly while maintaining excellent power efficiency.
● Improved Work Conditions:The Lorry Turntable greatly lowers the likelihood of accidents and injuries by removing the need for workers to reverse vehicles over long distances. It improves workplace safety by allowing for the smooth and secure movement of heavy vehicles.
● Increased Efficiency: BThe turntable enhances turnaround times for loading and unloading by shortening the time trucks spend reversing and turning.This leads to increased operational efficiency and reduced overhead costs for companies.
Parameter | Value | ||||
| Diameter | 9-meter | 12-meter | 15-meter | 18-meter | 24-meter |
| Height | 500mm | 500mm | 550mm | 550mm | 550mm |
| Rotating Speed | 0.1~0.5RPM | 0.1~0.5RPM | 0.1~0.5RPM | 0.1~0.25RPM | 0.1~0.25RPM |
| Loading | 30 tons | 40 tons | 60 tons | 80 tons | 100 tons |
| Motor Power | 4.0KW | 11KW | 18.5KW | 15KW | 22KW |
| Application | Display/ Garage/other similar environments | ||||
| Power Required | 3 phase 380V AC ~480V AC | ||||
| Drive Position | Weizhong Patent Pin-Gear Drive System | ||||
| Steel Coating | Rust resistant paint and primer / Hot-dipped galvanized | ||||
| Top Surface | 6mm~8mm thick diamond tread steel plate | ||||
| Remote Control system | Sweden Tele-Radio Remote control system | ||||
| Steel Coating | Rust resistant paint and primer / Hot-dipped galvanized | ||||
| Top Surface | 18mm thick plywood / 4mm thick checkered steel plate / 6mm thick checkered aluminum alloy | ||||
| Additional Option | PC Control / Motion Control / Stop Position Control | ||||
1. What types of vehicles can the Weizhong Lorry Turntable accommodate?
The Weizhong Lorry Turntable is designed to accommodate a wide range of vehicles, including trucks, lorries, and other large equipment. It is available in various sizes, from 9 meters to 24 meters in diameter, and can support vehicles with weights ranging from 30 tons to 100 tons, depending on the model.
2. is the power requirement for the Weizhong Lorry Turntable?
The turntable operates on a 3-phase 380V AC ~480V AC power supply. Power consumption varies by model, ranging from 4.0KW to 22KW depending on the turntable's size.
3.What is the maximum load capacity of the turntable?
The Weizhong Lorry Turntable supports load capacities from 30 tons (9-meter model) to 100 tons (24-meter model), designed to efficiently handle heavy-duty vehicles and equipment.4. 4.Can the turntable rotate continuously?
Yes, the turntable can rotate 360 degrees continuously, providing smooth and reliable rotation for vehicles that need to maneuver in tight spaces.
●Proven Innovation: Weizhong’s patented Pin-Gear Drive System delivers excellent performance, requires minimal maintenance, and ensures long-lasting durability, backed by a strong history of design and engineering expertise.
● Customization and Versatility: Whether for small warehouses or large industrial sites, Weizhong offers diverse sizes and load capacities. The Lorry Turntable is flexible, efficient, and designed to meet the needs of multiple industries.
● 360° Rotation: The Lorry Turntable offers full 360-degree rotation, allowing vehicles to maneuver with ease in tight spaces. It's ideal for reversing long distances or turning in confined areas.
● High-Speed Rotation: With a speed of up to 0.5 RPM, this turntable provides quick and efficient vehicle movements, helping speed up the loading and unloading process.
● Reliable Drive System: Featuring Weizhong’s patented Pin-Gear Drive System, the turntable runs smoothly, requiring minimal maintenance, and operates quietly while maintaining excellent power efficiency.
● Improved Work Conditions:The Lorry Turntable greatly lowers the likelihood of accidents and injuries by removing the need for workers to reverse vehicles over long distances. It improves workplace safety by allowing for the smooth and secure movement of heavy vehicles.
● Increased Efficiency: BThe turntable enhances turnaround times for loading and unloading by shortening the time trucks spend reversing and turning.This leads to increased operational efficiency and reduced overhead costs for companies.
Parameter | Value | ||||
| Diameter | 9-meter | 12-meter | 15-meter | 18-meter | 24-meter |
| Height | 500mm | 500mm | 550mm | 550mm | 550mm |
| Rotating Speed | 0.1~0.5RPM | 0.1~0.5RPM | 0.1~0.5RPM | 0.1~0.25RPM | 0.1~0.25RPM |
| Loading | 30 tons | 40 tons | 60 tons | 80 tons | 100 tons |
| Motor Power | 4.0KW | 11KW | 18.5KW | 15KW | 22KW |
| Application | Display/ Garage/other similar environments | ||||
| Power Required | 3 phase 380V AC ~480V AC | ||||
| Drive Position | Weizhong Patent Pin-Gear Drive System | ||||
| Steel Coating | Rust resistant paint and primer / Hot-dipped galvanized | ||||
| Top Surface | 6mm~8mm thick diamond tread steel plate | ||||
| Remote Control system | Sweden Tele-Radio Remote control system | ||||
| Steel Coating | Rust resistant paint and primer / Hot-dipped galvanized | ||||
| Top Surface | 18mm thick plywood / 4mm thick checkered steel plate / 6mm thick checkered aluminum alloy | ||||
| Additional Option | PC Control / Motion Control / Stop Position Control | ||||
1. What types of vehicles can the Weizhong Lorry Turntable accommodate?
The Weizhong Lorry Turntable is designed to accommodate a wide range of vehicles, including trucks, lorries, and other large equipment. It is available in various sizes, from 9 meters to 24 meters in diameter, and can support vehicles with weights ranging from 30 tons to 100 tons, depending on the model.
2. is the power requirement for the Weizhong Lorry Turntable?
The turntable operates on a 3-phase 380V AC ~480V AC power supply. Power consumption varies by model, ranging from 4.0KW to 22KW depending on the turntable's size.
3.What is the maximum load capacity of the turntable?
The Weizhong Lorry Turntable supports load capacities from 30 tons (9-meter model) to 100 tons (24-meter model), designed to efficiently handle heavy-duty vehicles and equipment.4. 4.Can the turntable rotate continuously?
Yes, the turntable can rotate 360 degrees continuously, providing smooth and reliable rotation for vehicles that need to maneuver in tight spaces.
●Proven Innovation: Weizhong’s patented Pin-Gear Drive System delivers excellent performance, requires minimal maintenance, and ensures long-lasting durability, backed by a strong history of design and engineering expertise.
● Customization and Versatility: Whether for small warehouses or large industrial sites, Weizhong offers diverse sizes and load capacities. The Lorry Turntable is flexible, efficient, and designed to meet the needs of multiple industries.
