Weizhong designs and manufactures revolving stages with proprietary pin-gear drive technology, serving performing arts venues, research institutes including CETC, and industrial facilities since 1991. Our rotary stages are engineered for continuous operation, with modular structures to support deployment for global commercial projects.
The platform uses an exclusive pin-gear drive system, delivering 0.01° rotational accuracy during full 360-degree rotation. Compared with traditional friction drive structures, this design eliminates operational slip and reduces maintenance demands, supporting vibration-free, low-noise performance. Paired with industrial-grade bearings, the drive system maintains stable motion across extended operating cycles, suitable for scenarios requiring consistent positioning performance. The drive configuration supports continuous 24/7 operation for long-cycle production or event scenarios.
Each rotary stage features a bolt-together steel structure for stable structural support. The maximum load capacity reaches 1,000 tons, accommodating heavy loads such as full vehicles, large exhibition props, and industrial processing equipment. The steel frame maintains structural stability under long-term load conditions, adapting to both temporary exhibition setups and long-term industrial installations. The structural design follows uniform load-bearing standards to avoid local deformation during use.
We provide full customization options for revolving stages to match specific project requirements. Platform diameter can be configured from 3m to 60m, with load capacity adjusted to fit application needs. Surface materials are available in wood, metal, and composite options, selected based on load requirements, usage scenarios, and visual design needs. Our engineering team supports custom adjustments to rotation speed range and control modes to align with specific operational workflows.
The modular bolt-together design allows full disassembly of all platform components, enabling packaging in standard shipping containers for overseas ocean freight. This design applies to all diameter specifications, including 60m large-scale platforms, reducing international logistics costs and simplifying customs clearance for commercial procurement. All platforms are delivered with detailed 3D assembly drawings and step-by-step video guides. Our engineering team provides real-time remote technical support to assist local contractors with on-site assembly work.

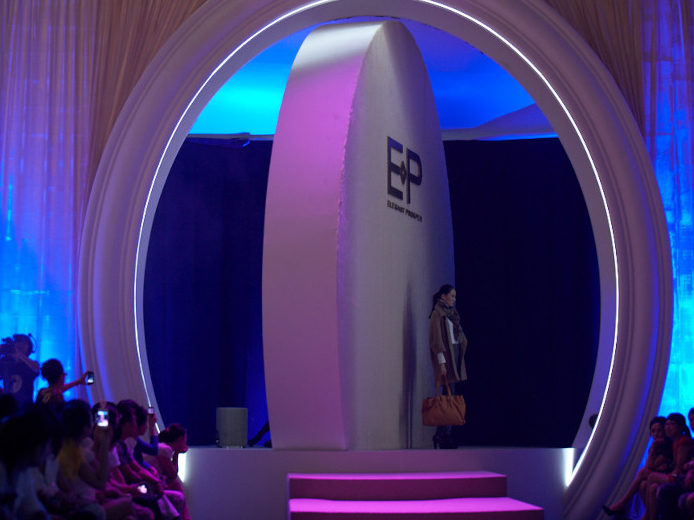

Revolving stages are widely used in theater productions, concert halls, and television studios, supporting smooth scene transitions and visual presentation effects. For trade shows and automotive exhibitions, the platforms deliver 360-degree display functionality for exhibits, with stable rotation to support all-angle viewing for visitors. Low-noise, vibration-free operation ensures no interference with on-site audio or visual equipment during events, and the modular structure supports rapid disassembly and reassembly for touring productions.
In industrial settings, the rotary stages serve as positioning platforms for automotive assembly, component testing, and automated production workflows. The 0.01° positioning accuracy supports precise workpiece alignment during processing and inspection procedures. The platforms can be integrated with PLC systems and remote control panels, allowing operators to adjust rotation speed and direction according to production needs. The high load capacity supports use with heavy industrial equipment and full-vehicle testing setups.
Specification Item | Parameter Range |
|---|---|
Rotational accuracy | 0.01° |
Diameter range | 3m - 60m |
Maximum load capacity | 1,000t |
Drive type | Pin-gear drive |
Structure form | Modular bolt-together steel structure |
Surface material options | Wood, metal, composite |
Voltage compatibility | 110V - 480V |
Frequency compatibility | 50Hz - 60Hz |
Control mode | Control panel, remote control, PLC integration |
Yes. We configure the drive motor and control system according to the local power standards of the project location, supporting voltage ranges from 110V to 480V and both 50Hz and 60Hz frequencies. This ensures the equipment can operate normally in different countries and regions without additional power conversion equipment.
All our rotary stages adopt a modular split design. Even platforms with a 60m diameter can be fully disassembled into components that fit inside standard shipping containers. This design supports cost-effective ocean freight and simplifies the international transportation and customs clearance process for commercial procurement projects.
We provide complete assembly guidance materials for all orders, including 3D construction drawings and instructional video tutorials. Our engineering team based in Shenyang offers real-time remote technical support to answer assembly questions and guide local construction teams through the installation process.
For custom configuration requests and project quotations, you may contact our engineering team to discuss your specific application requirements.
