Weizhong Functional Rotating Platforms support safe and efficient vehicle maneuvering in tight spaces. Built with high-grade steel and a proprietary Pin-Gear drive system, these platforms accommodate cars, SUVs, and heavy industrial machinery. With 35 years of industry application experience, the platforms deliver positioning accuracy of 0.01° with minimal vibration during operation. Suitable for both residential garages and high-traffic manufacturing facilities, they offer a modular, low-maintenance solution that optimizes space usage and operational safety. Ultra-low-profile surface-mounted configurations can reduce civil construction requirements, while flush-mounted installations require model-specific pit depth and drainage planning.
Every Weizhong Stable Rotating Platform is constructed with high-grade industrial steel and precision welding to adapt to rigorous operating environments. Different from standard rotating bases, the platforms are designed with graded load capacities ranging from 3,000kg to over 50,000kg. Standard models fit daily vehicle parking and light commercial scenarios, while heavy-duty models support continuous operation for automotive logistics and heavy industrial applications.
The patented Pin-Gear drive mechanism delivers smooth, low-noise rotation compared to conventional friction-drive systems. This technology achieves 0.01° positioning accuracy and reduces the jitter common in basic rotating platforms. It fits scenarios with high precision requirements, including high-end commercial garages and precision manufacturing facilities.
The platforms support two installation modes to match different site requirements: a surface-mounted low-profile design and a pit-mounted flush design. Weizhong’s ultra-low-profile Pin-Gear configuration has a structural height of 127mm (5 inches), while standard configurations may have a structural height of approximately 310mm, depending on the selected model, load capacity, surface finish, and project requirements. Final equipment height and foundation dimensions must be confirmed before civil construction begins.
For pit-mounted or outdoor installations, the civil foundation must include an effective drainage system. A 1:100 drainage slope should be incorporated into the pit floor to guide water toward the drainage outlet or sump, helping prevent water accumulation around the motor, drive components, and electrical system.
Parameter | Standard Range | Heavy-Duty Range |
|---|---|---|
Diameter Options | 4.0m / 4.5m / 5.0m | 6.0m - 25.0m (Custom) |
Load Capacity | 3,000kg - 5,000kg | Up to 50,000kg+ |
Drive System | Weizhong Patented Pin-Gear System | Weizhong Patented Pin-Gear System |
Motor System | German NORD Gearbox with VFD Speed Control | German NORD Gearbox with VFD Speed Control |
Installation | Surface Mounted (Low Profile) or Pit Mounted | Surface Mounted (Low Profile) or Pit Mounted |

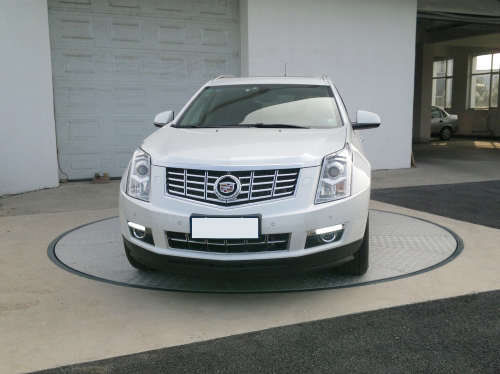

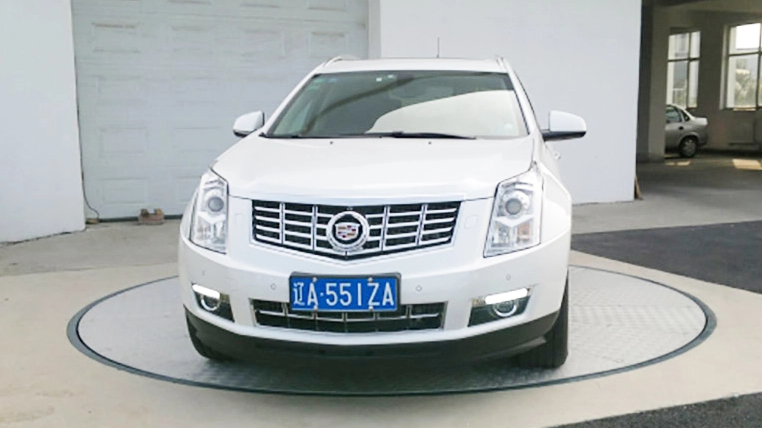

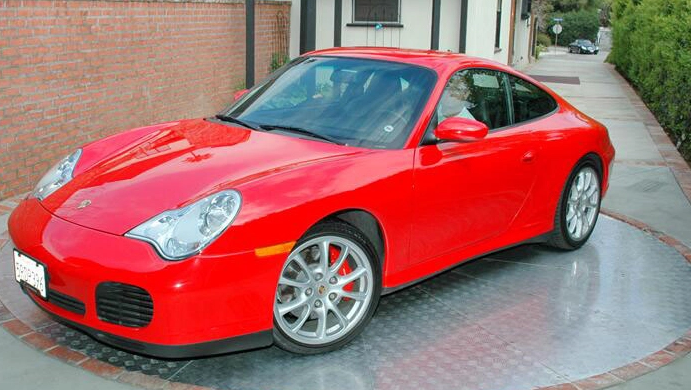

For commercial parking facilities and high-end residential garages, the rotating platform solves the problem of difficult vehicle turning in narrow driveways and limited parking spaces. It reduces the space required for vehicle maneuvering and improves parking space utilization, making it suitable for urban locations with high land costs.
In industrial and logistics settings, heavy-duty models support the rotation and positioning of heavy machinery, production workpieces, and logistics equipment. They optimize workflow layout and reduce the time required for equipment transfer, supporting stable operation in manufacturing workshops and logistics hubs.

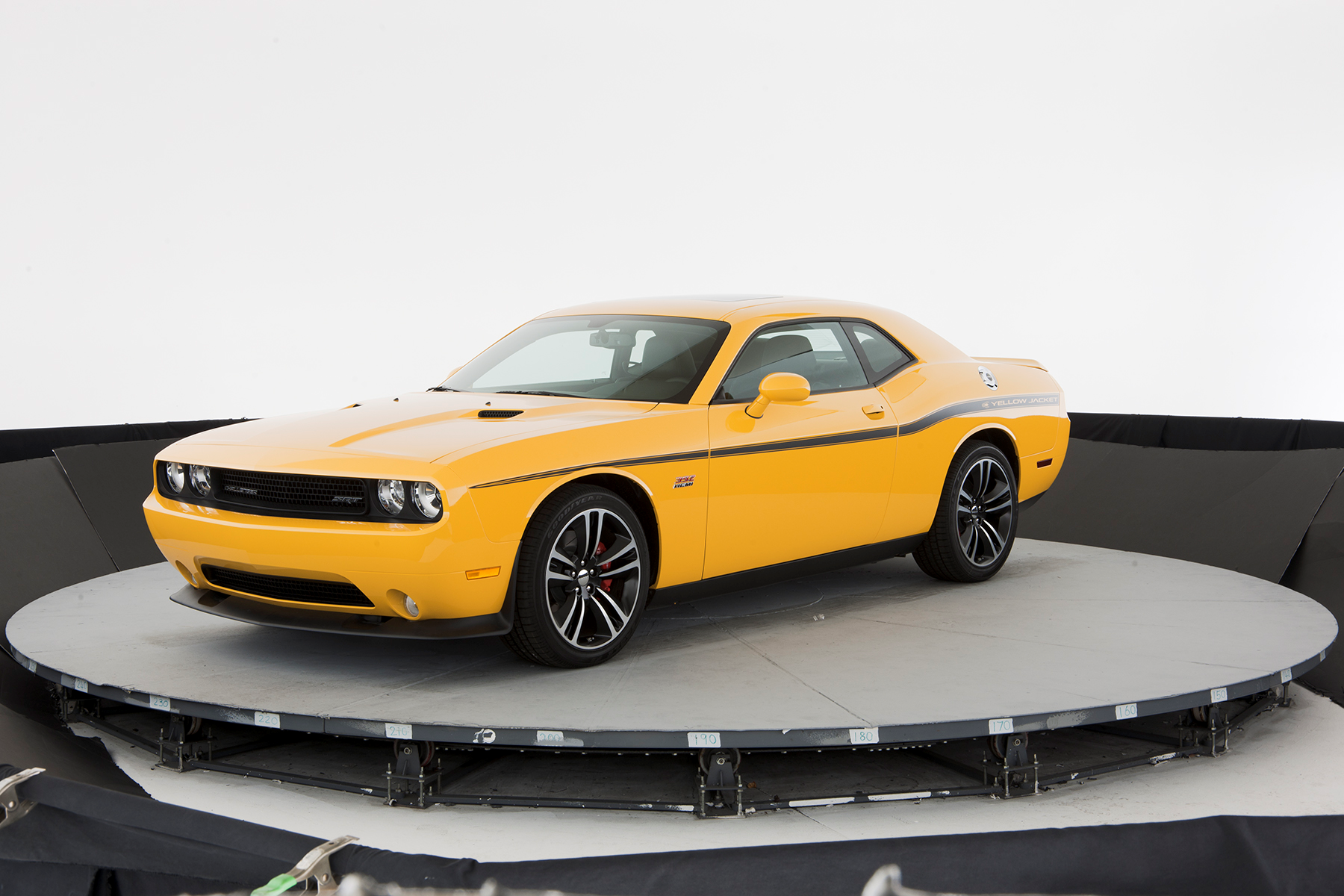

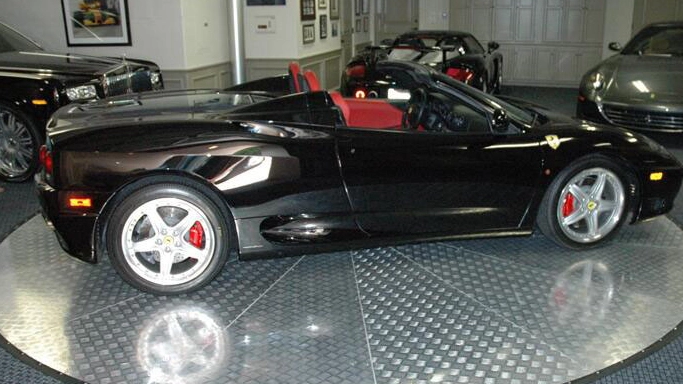

For exhibition venues and product photography studios, the platform provides smooth, low-jitter rotation for vehicle and product display. The precise angle control supports consistent display effects and standardized shooting workflows.
Yes. We offer an ultra-low-profile Pin-Gear configuration with a structural height of 127mm (5 inches). Standard configurations may be approximately 310mm high, so the final equipment height, access ramp, pit depth, and finished floor level must be confirmed according to the selected model and site conditions.
Weizhong provides full 3D assembly guides and video tutorials. Our engineering team in Shenyang offers real-time remote technical support to assist with installation for projects across global locations.
Yes. For heavy-duty applications, platform diameters can be customized within the range of 6.0m to 25.0m to match specific load, site dimension and operational requirements. Business buyers can contact our team to share project details and receive tailored specification suggestions.
