A tight garage can make every exit stressful. A car turntable can change that. It lets the vehicle rotate in place, so drivers can leave forward instead of reversing. In this article, you will learn when retrofit installation works, what to check first, and how to plan a safer garage turntable project.
Yes, it is possible in many existing garages. The real question is not only “Can it fit?” but “Can it rotate safely, support the vehicle, and work well every day?” A car turntable is a rotating platform that allows a vehicle to turn 360 degrees in a fixed area. In an existing garage, it helps solve one common problem: the driver has room to park but not enough room to turn.
A retrofit project usually works best when the garage has enough floor area for the platform diameter and enough surrounding clearance for the vehicle body. The turntable does not only need space for the tires. It also needs space for the front bumper, rear bumper, mirrors, and garage door zone. If the platform is too small, the vehicle may rotate, but the movement will feel unsafe.

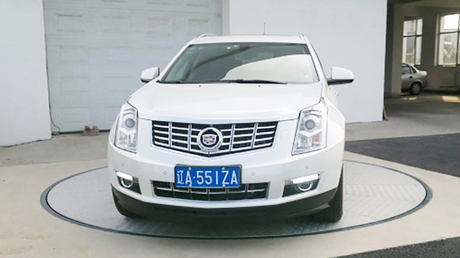

A garage turntable can be integrated into residential and commercial garage layouts.
The first check is the usable garage area. A car turntable needs a circular rotation zone. This zone should stay free from columns, storage cabinets, wall corners, workbenches, and door hardware. In many garages, the vehicle can park inside, but it cannot rotate because storage or wall angles reduce usable space.
A good planning method is simple. Mark the possible platform circle on the floor. Then check the vehicle’s swept path while turning. If the vehicle is long, the front and rear overhangs may require a larger platform. For SUVs or luxury sedans, extra clearance is safer than a tight fit.
A retrofit car turntable depends on the floor below it. The concrete must support the platform, the vehicle, and the repeated rotating load. Older garage floors may have cracks, uneven areas, or weak sections near drains. These issues do not always stop installation, but they may require repair before the platform is installed.
For flush-mounted installation, the floor may need shallow cutting or micro-pit preparation. For surface-mounted installation, the platform sits above the existing floor, but the surface still needs to be flat and stable. Garage turntables can be integrated into existing concrete floors or new builds, which makes them suitable for retrofit planning when site conditions are correct.
Load capacity is a key safety point. The system should support the heaviest vehicle expected to use it. A platform chosen for a small car may not suit a heavier SUV, a modern electric vehicle, or a reinforced luxury vehicle.
This is especially important today because many premium homeowners are upgrading to heavy modern EVs and armored luxury SUVs. These vehicles can place higher loads on the platform than traditional sedans. Weizhong’s heavy-duty industrial design background helps the car turntable support these demanding vehicle types while leaving a safer margin for future vehicle upgrades.
Do not use the vehicle’s empty curb weight alone if the garage may hold vehicles with passengers, cargo, or special equipment. It is safer to build in margin.
Most garage turntables use motorized control. The installer should check power access, control panel position, emergency stop access, and cable routing. For private garages, safety-focused control logic is especially important because the platform operates close to walls, vehicles, and people.
Weizhong garage car turntables can be configured with jog control, also known as hold-to-run remote operation. The platform rotates only while the driver keeps pressing the remote-control button. Once the button is released, the system stops instantly and accurately. This release-to-stop logic gives the driver direct control during daily use and helps reduce the risk of accidental contact with garage walls, doors, or nearby objects.
Remote control and automatic positioning can also improve convenience, especially when the same vehicle enters and exits often. However, for enclosed residential garages, jog control is a practical safety feature that should be considered early in the project.
Note: A retrofit plan should include electrical routing and control logic early, not after the floor work is finished.
A flush-mounted car turntable sits level with the garage floor. It often looks cleaner and feels more built-in. This option is useful in high-end garages, indoor parking suites, and spaces where the platform should blend into the flooring. It also reduces the small height transition between the floor and the platform.
For many retrofit projects, customers worry that flush-mounted installation means deep excavation or major structural renovation. This is where Weizhong’s ultra-thin profile becomes important. The turntable can be designed with an overall structure height of about 150–200mm, which means the garage usually only needs a very shallow micro-pit instead of deep structural excavation. This helps reduce civil construction cost, shorten the retrofit schedule, and avoid damaging the deeper structure of an existing garage.
A surface-mounted car turntable sits on top of the existing floor. It can be easier to install when the garage slab should not be heavily modified. It may also suit projects where downtime must stay short. The main issue is platform height. Ramps or edge treatments may be needed so the vehicle can enter smoothly.
Installation Type | Best For | Main Benefit | Main Concern |
|---|---|---|---|
Flush-mounted car turntable | Permanent garage upgrades | Clean floor-level finish | Needs shallow micro-pit planning |
Surface-mounted car turntable | Faster retrofit projects | Less floor cutting | Raised platform profile |
Custom hybrid layout | Complex garage conditions | Better fit for unique spaces | Needs stronger planning |
Both styles can work. The right choice depends on budget, floor condition, vehicle clearance, and design goals.
The project starts with measurement. The team checks garage width, length, ceiling height, door position, wall clearance, vehicle size, and floor condition. This step decides whether a standard layout is practical or a custom car turntable is needed.
For flush-mounted projects, the installer prepares the shallow recess or micro-pit and foundation. Thanks to the 150–200mm ultra-thin profile, the project does not usually require massive structural excavation. For surface-mounted projects, the existing floor may need leveling or strengthening. Drainage should be considered if water can enter the garage or if the turntable connects to a driveway.
For existing garages, installation access is a real concern. The garage may already be enclosed, and large cranes or heavy welding work may not be practical indoors. Weizhong’s system can support modular, zero-welding on-site assembly. The components can be carried through a standard garage door and assembled on site with bolts and positioning hardware.
This modular design helps create a more practical retrofit process. It reduces hot work inside the garage, lowers disruption to the property, and makes installation easier in finished residential spaces.
After the main structure is assembled, the installation team can use a micro-leveling system to fine-tune the platform level. This is important because many old garage floors are not perfectly flat. Accurate leveling helps the platform rotate smoothly and keeps the vehicle stable during operation.
The Proprietary Pin-Gear Drive system, control panel, safety devices, and power connections are then installed. A stable drive system is especially important in garage environments, where vehicles may bring in rainwater, snow, mud, or dust from outside.
Unlike conventional friction drive systems that depend on wheel pressure and surface grip, Weizhong’s Proprietary Pin-Gear Drive uses positive mechanical engagement. This helps provide zero slippage in wet or snowy garage conditions and supports quieter operation without friction-related noise that may disturb family members.
The last step is testing. The system should rotate with the intended vehicle, stop accurately, and operate safely. The user should understand how to use the controls, hold-to-run remote operation, emergency stop, and basic inspection routine.
Tip: Ask for a layout drawing before approval, because small garage changes can affect the rotation path.
The biggest benefit is safer forward exit. Many garage layouts force drivers to reverse into a narrow driveway or busy road. A car turntable reduces that risk by allowing the vehicle to face the exit before moving.
The second benefit is better use of space. Instead of expanding the garage or redesigning the driveway, the turntable makes the existing footprint work harder. This is helpful in urban homes, basement garages, hillside properties, and narrow parking areas.
The third benefit is reduced daily stress. A difficult garage may seem manageable once or twice. Over time, tight turns, repeated reversing, and small collision risks become frustrating. A garage car turntable makes the routine easier, especially for larger vehicles.
It can also improve the look and function of a premium garage. Surface finishes such as anti-slip coating, decorative flooring, or customized paving can help the turntable match the surrounding design.
For modern garages, the long-term value is also about future vehicle compatibility. A properly engineered car turntable can better support heavier EVs, luxury SUVs, and changing vehicle sizes, which makes the garage more adaptable over time.
A car turntable is not ideal for every existing garage. If the garage is too narrow for full vehicle rotation, the system may not solve the main problem. If the concrete slab is too weak or damaged, repair work may raise the project cost.
It may also be unnecessary if the driveway already provides safe turning space. In that case, a driveway turntable or layout change may be more practical than installing a platform inside the garage. Outdoor systems can help vehicles turn around without reversing in narrow, sloped, or traffic-facing access areas.
Budget is another factor. A proper retrofit includes design, platform manufacturing, floor preparation, power connection, controls, leveling, and testing. Buyers should compare the cost against the value of safer access, easier parking, and better property function.
Note: If the garage cannot provide enough rotation clearance, the driveway may be the better installation point.
The best system is not always the largest one. It is the one that fits the vehicle, the floor, and the daily use pattern. For a private garage used several times a day, smooth start-stop control, low noise, and safe hold-to-run operation are important. For a shared parking space, durability and control safety may matter more.
Look at these selection points before ordering:
● Vehicle length, width, weight, and turning clearance
● Garage floor strength and level condition
● Flush-mounted, surface-mounted, or micro-pit installation preference
● Power supply and control location
● Jog control, remote control, or automatic positioning requirements
● Indoor moisture, drainage, and cleaning needs
● Surface finish and anti-slip requirements
● Future vehicle size changes, including EVs and luxury SUVs
A custom automotive turntable is often the safest route when the garage is already built. It avoids forcing a standard platform into a space that needs a tailored solution.
Adding a car turntable to an existing garage can be practical when space, floor strength, load capacity, control logic, and installation conditions are planned well. For retrofit projects, the key is to avoid treating the turntable as a simple parking accessory. It should be planned as part of the garage structure and daily vehicle movement.
Weizhong Revolving Machinery Co., Ltd. provides customized car turntable systems built for smooth rotation, quiet operation, safer vehicle movement, and retrofit-friendly installation. Its 150–200mm ultra-thin profile, Proprietary Pin-Gear Drive system, hold-to-run remote control, modular zero-welding assembly, micro-leveling system, and heavy-duty load design help turn tight existing garages into safer and more useful parking spaces.
Q: Can a car turntable be installed in an old garage?
A: Yes, if the garage has enough rotation clearance, suitable floor strength, and proper power access. A site layout check is usually needed before confirming the solution.
Q: Does a flush-mounted garage turntable require deep excavation?
A: Not necessarily. Weizhong’s ultra-thin 150–200mm profile can support shallow micro-pit installation, reducing the need for deep structural excavation.
Q: Is a car turntable safe for a private residential garage?
A: Yes, when it uses suitable safety controls. Jog control or hold-to-run remote operation allows the platform to rotate only while the button is pressed and stop once released.
Q: Can it support heavy EVs or luxury SUVs?
A: Yes, the system can be customized for heavy modern EVs, luxury SUVs, and higher load requirements when the vehicle weight and size are confirmed during project planning.
Q: What information should I provide before requesting a quote?
A: Provide garage dimensions, vehicle size and weight, floor condition, preferred installation type, power access, and any surface finish or control requirements.
